Simultaneous Nadir Overpasses (SNOs) Predictions
Prediction of SNOs between NOAA-20 and AQUA Satellite Orbit:
Table of predicted SNOs for the next 14.0 days since TLE Epoch: 11/23/2023
| Index | Date (NOAA-20) | Time (NOAA-20) | Lat,Lon (NOAA-20) | SZA (NOAA-20 ) | Date (AQUA) | Time (AQUA) | Lat,Lon (AQUA) | SZA (AQUA ) | Distance(km) | Time Diff (sec) |
| 1 | 11/24/2023 | 13:30:51 | 80.95,-107.90 | 109.01 | 11/24/2023 | 13:31:59 | 80.96,-107.81 | 108.96 | 1.60 | 68 |
| 2 | 11/24/2023 | 14:21:34 | -80.99, 60.28 | 71.11 | 11/24/2023 | 14:21:22 | -80.99, 60.26 | 71.10 | 0.48 | 12 |
| 3 | 11/27/2023 | 03:15:32 | -80.97,-133.71 | 70.52 | 11/27/2023 | 03:16:23 | -80.97,-133.71 | 70.55 | 0.16 | 51 |
| 4 | 11/27/2023 | 04:06:14 | 81.01, 34.51 | 109.36 | 11/27/2023 | 04:05:44 | 81.01, 34.58 | 109.37 | 1.39 | 30 |
| 5 | 11/29/2023 | 17:00:12 | 80.98,-159.58 | 109.92 | 11/29/2023 | 17:00:44 | 80.98,-159.54 | 109.90 | 0.80 | 32 |
| 6 | 11/29/2023 | 17:50:55 | -81.02, 8.65 | 70.21 | 11/29/2023 | 17:50:07 | -81.02, 8.58 | 70.17 | 1.26 | 48 |
| 7 | 12/02/2023 | 06:44:51 | -81.01, 174.88 | 69.74 | 12/02/2023 | 06:45:04 | -81.01, 174.73 | 69.72 | 2.75 | 13 |
| 8 | 12/02/2023 | 07:35:33 | 81.04, -16.93 | 110.15 | 12/02/2023 | 07:34:25 | 81.04, -17.03 | 110.21 | 1.84 | 68 |
| 9 | 12/04/2023 | 19:38:50 | -80.96, -19.67 | 69.19 | 12/04/2023 | 19:40:02 | -80.96, -19.59 | 69.25 | 1.41 | 72 |

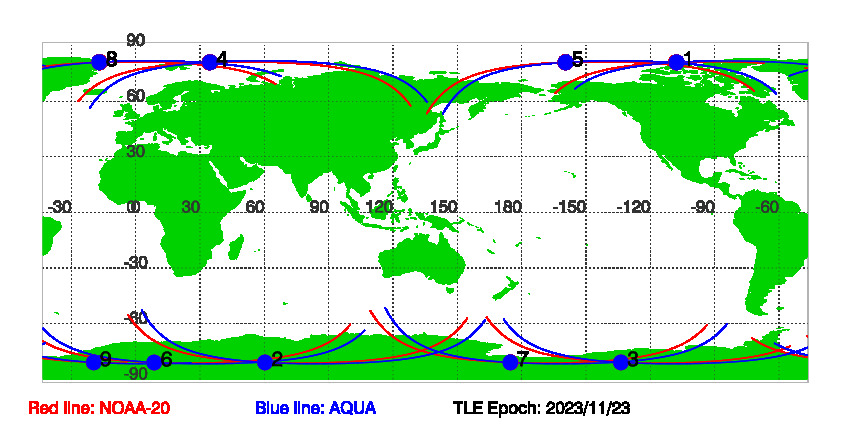

Figure of NOAA-20 and AQUA satellite orbits during SNOs since TLE Epoch: 11/23/2023
Download SNOs between NOAA-20 and AQUA since TLE EPOCH: 11/23/2023 in txt file.
Historial Predications of SNOs between NOAA-20 and AQUA
