Simultaneous Nadir Overpasses (SNOs) Predictions
Prediction of SNOs between NOAA-20 and AQUA Satellite Orbit:
Table of predicted SNOs for the next 14.0 days since TLE Epoch: 9/20/2022
| Index | Date (NOAA-20) | Time (NOAA-20) | Lat,Lon (NOAA-20) | SZA (NOAA-20 ) | Date (AQUA) | Time (AQUA) | Lat,Lon (AQUA) | SZA (AQUA ) | Distance(km) | Time Diff (sec) |
| 1 | 09/22/2022 | 15:38:30 | 79.18,-160.46 | 92.47 | 09/22/2022 | 15:38:43 | 79.17,-160.55 | 92.48 | 1.94 | 13 |
| 2 | 09/22/2022 | 16:29:08 | -79.43, 8.79 | 87.92 | 09/22/2022 | 16:28:03 | -79.43, 8.80 | 87.88 | 0.46 | 65 |
| 3 | 09/25/2022 | 07:04:44 | -79.05, 147.12 | 86.37 | 09/25/2022 | 07:05:04 | -79.05, 147.15 | 86.39 | 0.76 | 20 |
| 4 | 09/25/2022 | 07:55:17 | 79.45, -42.60 | 93.02 | 09/25/2022 | 07:54:19 | 79.45, -42.65 | 93.08 | 0.90 | 58 |
| 5 | 09/27/2022 | 22:30:51 | 79.17, 96.43 | 94.42 | 09/27/2022 | 22:31:18 | 79.17, 96.30 | 94.42 | 2.79 | 27 |
| 6 | 09/27/2022 | 23:21:29 | -79.43, -94.29 | 85.98 | 09/27/2022 | 23:20:38 | -79.43, -94.34 | 85.94 | 1.03 | 51 |
| 7 | 09/30/2022 | 13:57:06 | -79.05, 44.00 | 84.43 | 09/30/2022 | 13:57:39 | -79.05, 44.03 | 84.46 | 0.47 | 33 |
| 8 | 09/30/2022 | 14:47:40 | 79.41,-146.02 | 95.03 | 09/30/2022 | 14:46:55 | 79.41,-146.05 | 95.07 | 0.60 | 45 |
| 9 | 10/03/2022 | 05:23:15 | 79.09, -7.26 | 96.48 | 10/03/2022 | 05:23:54 | 79.09, -7.32 | 96.46 | 1.24 | 39 |

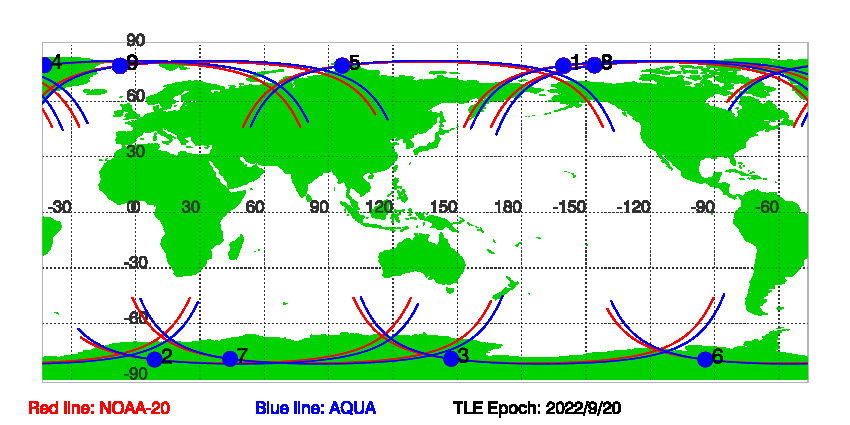

Figure of NOAA-20 and AQUA satellite orbits during SNOs since TLE Epoch: 9/20/2022
Download SNOs between NOAA-20 and AQUA since TLE EPOCH: 09/20/2022 in txt file.
Historial Predications of SNOs between NOAA-20 and AQUA
