Simultaneous Nadir Overpasses (SNOs) Predictions
Prediction of SNOs between NOAA-20 and AQUA Satellite Orbit:
Table of predicted SNOs for the next 14.0 days since TLE Epoch: 9/12/2022
| Index | Date (NOAA-20) | Time (NOAA-20) | Lat,Lon (NOAA-20) | SZA (NOAA-20 ) | Date (AQUA) | Time (AQUA) | Lat,Lon (AQUA) | SZA (AQUA ) | Distance(km) | Time Diff (sec) |
| 1 | 09/14/2022 | 16:29:22 | 78.79,-175.77 | 90.16 | 09/14/2022 | 16:30:29 | 78.79,-175.80 | 90.11 | 0.71 | 67 |
| 2 | 09/14/2022 | 17:20:00 | -79.06, -6.65 | 90.24 | 09/14/2022 | 17:19:49 | -79.07, -6.52 | 90.26 | 2.81 | 11 |
| 3 | 09/17/2022 | 07:56:56 | -75.27, 117.47 | 84.39 | 09/17/2022 | 07:58:10 | -75.09, 118.40 | 84.57 | 33.27 | 74 |
| 4 | 09/17/2022 | 08:46:06 | 79.23, -56.97 | 90.46 | 09/17/2022 | 08:46:04 | 79.23, -57.10 | 90.48 | 2.78 | 2 |
| 5 | 09/20/2022 | 00:12:22 | -79.08,-109.61 | 88.35 | 09/20/2022 | 00:12:28 | -79.08,-109.56 | 88.36 | 0.98 | 6 |
| 6 | 09/20/2022 | 01:02:55 | 79.48, 60.69 | 91.04 | 09/20/2022 | 01:01:43 | 79.47, 60.63 | 91.11 | 1.32 | 72 |
| 7 | 09/22/2022 | 15:38:29 | 79.21,-160.25 | 92.43 | 09/22/2022 | 15:38:43 | 79.20,-160.38 | 92.44 | 2.87 | 14 |
| 8 | 09/22/2022 | 16:29:08 | -79.43, 8.78 | 87.92 | 09/22/2022 | 16:28:04 | -79.43, 8.77 | 87.87 | 0.27 | 64 |
| 9 | 09/25/2022 | 07:04:45 | -79.02, 146.86 | 86.32 | 09/25/2022 | 07:05:06 | -79.02, 146.94 | 86.35 | 1.66 | 21 |

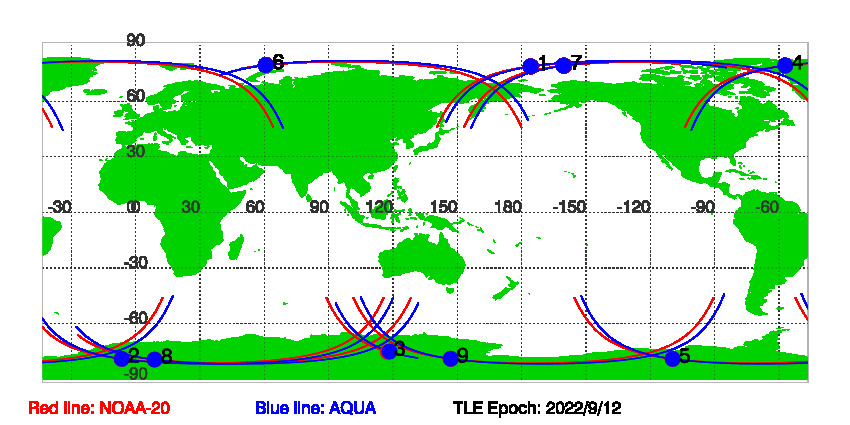

Figure of NOAA-20 and AQUA satellite orbits during SNOs since TLE Epoch: 9/12/2022
Download SNOs between NOAA-20 and AQUA since TLE EPOCH: 09/12/2022 in txt file.
Historial Predications of SNOs between NOAA-20 and AQUA
