Simultaneous Nadir Overpasses (SNOs) Predictions
Prediction of SNOs between NOAA-20 and AQUA Satellite Orbit:
Table of predicted SNOs for the next 14.0 days since TLE Epoch: 8/5/2022
| Index | Date (NOAA-20) | Time (NOAA-20) | Lat,Lon (NOAA-20) | SZA (NOAA-20 ) | Date (AQUA) | Time (AQUA) | Lat,Lon (AQUA) | SZA (AQUA ) | Distance(km) | Time Diff (sec) |
| 1 | 08/05/2022 | 23:15:25 | -78.57, -98.62 | 102.33 | 08/05/2022 | 23:16:00 | -78.57, -98.57 | 102.36 | 1.30 | 35 |
| 2 | 08/06/2022 | 00:05:59 | 78.95, 71.13 | 77.10 | 08/06/2022 | 00:05:16 | 78.96, 71.22 | 77.12 | 1.83 | 43 |
| 3 | 08/08/2022 | 14:41:32 | 78.58,-150.11 | 78.38 | 08/08/2022 | 14:42:25 | 78.57,-150.19 | 78.36 | 1.78 | 53 |
| 4 | 08/08/2022 | 15:32:08 | -78.93, 19.47 | 102.16 | 08/08/2022 | 15:31:43 | -78.94, 19.51 | 102.15 | 0.98 | 25 |
| 5 | 08/11/2022 | 06:07:46 | -78.33, 156.89 | 100.52 | 08/11/2022 | 06:08:56 | -78.34, 157.01 | 100.60 | 2.89 | 70 |
| 6 | 08/11/2022 | 06:58:18 | 78.79, -32.99 | 78.81 | 08/11/2022 | 06:58:10 | 78.80, -32.87 | 78.79 | 2.74 | 8 |
| 7 | 08/13/2022 | 22:24:26 | -78.81, -84.42 | 100.46 | 08/13/2022 | 22:24:36 | -78.81, -84.40 | 100.48 | 0.67 | 10 |
| 8 | 08/13/2022 | 23:14:59 | 79.21, 85.68 | 78.92 | 08/13/2022 | 23:13:51 | 79.21, 85.67 | 78.97 | 0.24 | 68 |
| 9 | 08/16/2022 | 13:50:34 | 78.77,-136.20 | 80.39 | 08/16/2022 | 13:51:01 | 78.77,-136.22 | 80.37 | 0.36 | 27 |

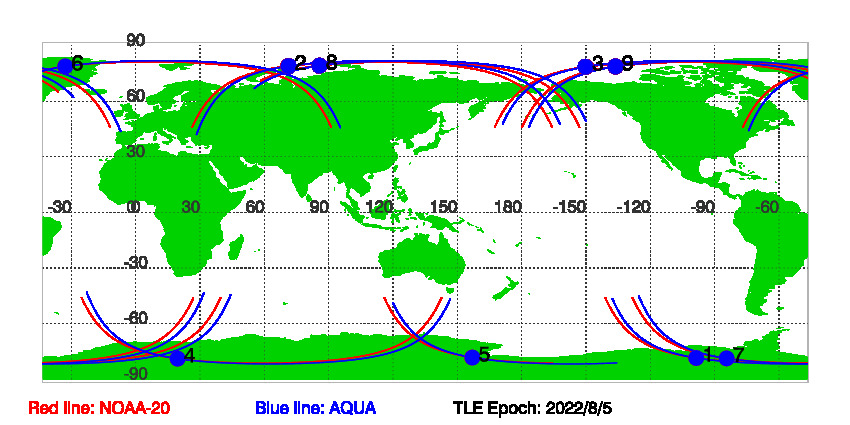

Figure of NOAA-20 and AQUA satellite orbits during SNOs since TLE Epoch: 8/5/2022
Download SNOs between NOAA-20 and AQUA since TLE EPOCH: 08/05/2022 in txt file.
Historial Predications of SNOs between NOAA-20 and AQUA
