Simultaneous Nadir Overpasses (SNOs) Predictions
Prediction of SNOs between NOAA-20 and AQUA Satellite Orbit:
Table of predicted SNOs for the next 14.0 days since TLE Epoch: 6/4/2022
| Index | Date (NOAA-20) | Time (NOAA-20) | Lat,Lon (NOAA-20) | SZA (NOAA-20 ) | Date (AQUA) | Time (AQUA) | Lat,Lon (AQUA) | SZA (AQUA ) | Distance(km) | Time Diff (sec) |
| 1 | 06/05/2022 | 23:09:57 | 78.05, 79.96 | 72.33 | 06/05/2022 | 23:10:13 | 78.05, 79.99 | 72.31 | 0.81 | 16 |
| 2 | 06/06/2022 | 00:00:25 | -78.74,-108.80 | 108.68 | 06/05/2022 | 23:59:24 | -78.73,-108.91 | 108.61 | 2.44 | 61 |
| 3 | 06/08/2022 | 14:36:09 | -77.97, 27.99 | 107.79 | 06/08/2022 | 14:36:50 | -77.97, 27.98 | 107.82 | 0.27 | 41 |
| 4 | 06/08/2022 | 15:26:42 | 78.41,-162.28 | 71.58 | 06/08/2022 | 15:26:05 | 78.42,-162.20 | 71.59 | 1.78 | 37 |
| 5 | 06/11/2022 | 06:02:26 | 77.61, -25.30 | 72.53 | 06/11/2022 | 06:03:31 | 77.62, -25.19 | 72.46 | 2.54 | 65 |
| 6 | 06/11/2022 | 06:52:52 | -78.41, 146.17 | 108.60 | 06/11/2022 | 06:52:40 | -78.41, 146.13 | 108.58 | 1.00 | 12 |
| 7 | 06/13/2022 | 22:19:05 | 78.19, 93.37 | 71.60 | 06/13/2022 | 22:19:17 | 78.19, 93.40 | 71.59 | 0.51 | 12 |
| 8 | 06/13/2022 | 23:09:39 | -78.65, -96.67 | 109.08 | 06/13/2022 | 23:08:33 | -78.66, -96.56 | 109.05 | 2.54 | 66 |
| 9 | 06/16/2022 | 13:45:18 | -78.07, 41.19 | 108.32 | 06/16/2022 | 13:45:54 | -78.07, 41.20 | 108.35 | 0.09 | 36 |

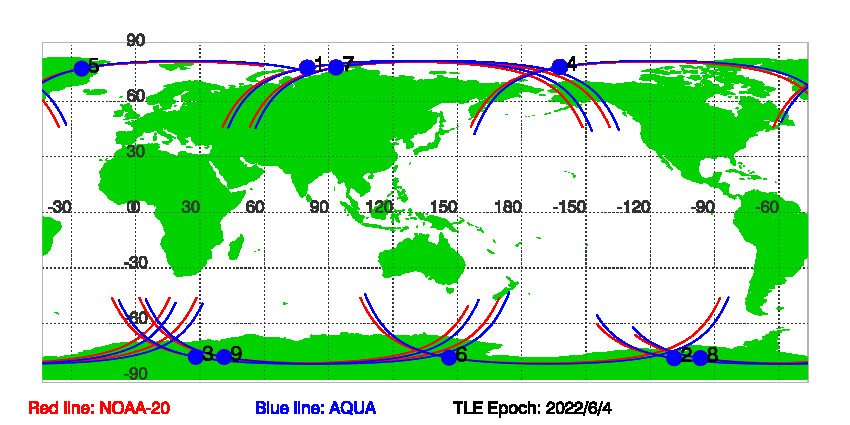

Figure of NOAA-20 and AQUA satellite orbits during SNOs since TLE Epoch: 6/4/2022
Download SNOs between NOAA-20 and AQUA since TLE EPOCH: 06/04/2022 in txt file.
Historial Predications of SNOs between NOAA-20 and AQUA
