Simultaneous Nadir Overpasses (SNOs) Predictions
Prediction of SNOs between NOAA-20 and AQUA Satellite Orbit:
Table of predicted SNOs for the next 14.0 days since TLE Epoch: 4/30/2022
| Index | Date (NOAA-20) | Time (NOAA-20) | Lat,Lon (NOAA-20) | SZA (NOAA-20 ) | Date (AQUA) | Time (AQUA) | Lat,Lon (AQUA) | SZA (AQUA ) | Distance(km) | Time Diff (sec) |
| 1 | 05/02/2022 | 10:16:18 | 77.62, -88.69 | 79.87 | 05/02/2022 | 10:16:58 | 77.61, -88.79 | 79.87 | 2.69 | 40 |
| 2 | 05/02/2022 | 11:06:48 | -78.25, 81.84 | 101.01 | 05/02/2022 | 11:06:11 | -78.24, 81.72 | 100.95 | 2.73 | 37 |
| 3 | 05/05/2022 | 01:42:39 | -77.20,-142.13 | 100.34 | 05/05/2022 | 01:43:50 | -77.20,-142.13 | 100.40 | 0.32 | 71 |
| 4 | 05/05/2022 | 02:33:07 | 77.88, 28.35 | 78.74 | 05/05/2022 | 02:33:00 | 77.88, 28.38 | 78.74 | 0.59 | 7 |
| 5 | 05/07/2022 | 17:59:22 | -77.72, -24.01 | 101.77 | 05/07/2022 | 17:59:46 | -77.72, -24.03 | 101.79 | 0.38 | 24 |
| 6 | 05/07/2022 | 18:49:51 | 78.33, 146.52 | 77.37 | 05/07/2022 | 18:48:57 | 78.33, 146.50 | 77.42 | 0.55 | 54 |
| 7 | 05/10/2022 | 09:25:38 | 77.44, -76.83 | 77.90 | 05/10/2022 | 09:26:31 | 77.45, -76.81 | 77.85 | 0.52 | 53 |
| 8 | 05/10/2022 | 10:16:08 | -78.09, 93.65 | 102.99 | 05/10/2022 | 10:15:44 | -78.09, 93.67 | 102.98 | 0.52 | 24 |
| 9 | 05/13/2022 | 01:42:17 | 78.07, 41.97 | 76.39 | 05/13/2022 | 01:42:22 | 78.06, 41.87 | 76.41 | 2.65 | 5 |

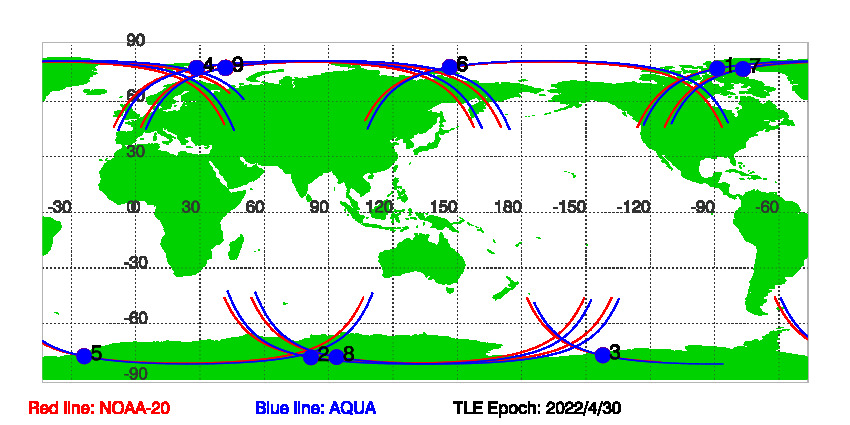

Figure of NOAA-20 and AQUA satellite orbits during SNOs since TLE Epoch: 4/30/2022
Download SNOs between NOAA-20 and AQUA since TLE EPOCH: 04/30/2022 in txt file.
Historial Predications of SNOs between NOAA-20 and AQUA
