Simultaneous Nadir Overpasses (SNOs) Predictions
Prediction of SNOs between NOAA-20 and AQUA Satellite Orbit:
Table of predicted SNOs for the next 14.0 days since TLE Epoch: 3/24/2022
| Index | Date (NOAA-20) | Time (NOAA-20) | Lat,Lon (NOAA-20) | SZA (NOAA-20 ) | Date (AQUA) | Time (AQUA) | Lat,Lon (AQUA) | SZA (AQUA ) | Distance(km) | Time Diff (sec) |
| 1 | 03/26/2022 | 05:05:19 | 77.12, -12.99 | 93.91 | 03/26/2022 | 05:05:34 | 77.11, -13.09 | 93.92 | 2.61 | 15 |
| 2 | 03/26/2022 | 05:55:53 | -77.62, 156.57 | 86.77 | 03/26/2022 | 05:54:50 | -77.62, 156.60 | 86.72 | 0.73 | 63 |
| 3 | 03/28/2022 | 20:31:49 | -76.38, -67.42 | 86.22 | 03/28/2022 | 20:32:42 | -76.39, -67.35 | 86.29 | 2.18 | 53 |
| 4 | 03/28/2022 | 21:22:12 | 77.31, 103.60 | 92.60 | 03/28/2022 | 21:21:48 | 77.31, 103.62 | 92.61 | 0.57 | 24 |
| 5 | 03/31/2022 | 12:48:30 | -77.06, 50.99 | 88.14 | 03/31/2022 | 12:48:45 | -77.05, 50.92 | 88.13 | 1.90 | 15 |
| 6 | 03/31/2022 | 13:39:01 | 77.62,-139.22 | 91.13 | 03/31/2022 | 13:37:58 | 77.62,-139.15 | 91.16 | 1.87 | 63 |
| 7 | 04/03/2022 | 04:14:52 | 76.59, -2.43 | 91.43 | 04/03/2022 | 04:15:45 | 76.59, -2.44 | 91.39 | 0.48 | 53 |
| 8 | 04/03/2022 | 05:05:18 | -77.46, 168.49 | 89.70 | 04/03/2022 | 05:04:54 | -77.45, 168.41 | 89.66 | 1.95 | 24 |
| 9 | 04/05/2022 | 20:31:37 | 77.12, 115.49 | 89.71 | 04/05/2022 | 20:31:51 | 77.11, 115.40 | 89.72 | 2.47 | 14 |

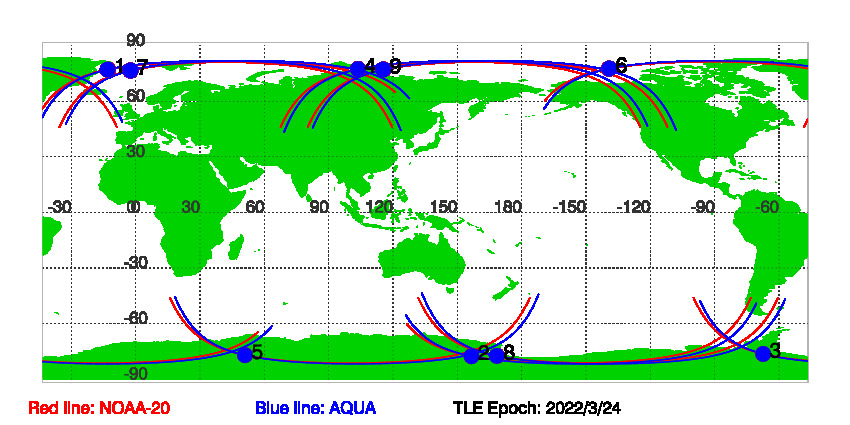

Figure of NOAA-20 and AQUA satellite orbits during SNOs since TLE Epoch: 3/24/2022
Download SNOs between NOAA-20 and AQUA since TLE EPOCH: 03/24/2022 in txt file.
Historial Predications of SNOs between NOAA-20 and AQUA
