Simultaneous Nadir Overpasses (SNOs) Predictions
Prediction of SNOs between NOAA-20 and AQUA Satellite Orbit:
Table of predicted SNOs for the next 14.0 days since TLE Epoch: 3/14/2022
| Index | Date (NOAA-20) | Time (NOAA-20) | Lat,Lon (NOAA-20) | SZA (NOAA-20 ) | Date (AQUA) | Time (AQUA) | Lat,Lon (AQUA) | SZA (AQUA ) | Distance(km) | Time Diff (sec) |
| 1 | 03/15/2022 | 13:39:02 | 77.02,-141.84 | 98.31 | 03/15/2022 | 13:39:13 | 77.02,-141.88 | 98.32 | 1.23 | 11 |
| 2 | 03/15/2022 | 14:29:34 | -77.61, 28.09 | 82.48 | 03/15/2022 | 14:28:27 | -77.62, 28.14 | 82.44 | 1.26 | 67 |
| 3 | 03/18/2022 | 05:05:22 | -76.70, 165.33 | 82.35 | 03/18/2022 | 05:06:13 | -76.69, 165.22 | 82.37 | 2.79 | 51 |
| 4 | 03/18/2022 | 05:55:55 | 77.18, -25.39 | 97.03 | 03/18/2022 | 05:55:28 | 77.19, -25.29 | 97.03 | 2.70 | 27 |
| 5 | 03/20/2022 | 21:22:12 | -77.04, -77.56 | 83.85 | 03/20/2022 | 21:22:25 | -77.03, -77.61 | 83.85 | 1.43 | 13 |
| 6 | 03/20/2022 | 22:12:38 | 77.80, 93.22 | 95.13 | 03/20/2022 | 22:11:34 | 77.79, 93.12 | 95.21 | 2.56 | 64 |
| 7 | 03/23/2022 | 12:48:35 | 76.53,-131.09 | 95.73 | 03/23/2022 | 12:49:27 | 76.53,-131.11 | 95.69 | 0.53 | 52 |
| 8 | 03/23/2022 | 13:39:06 | -77.19, 38.87 | 85.13 | 03/23/2022 | 13:38:40 | -77.20, 38.97 | 85.13 | 2.91 | 26 |
| 9 | 03/26/2022 | 05:05:24 | 76.91, -13.85 | 94.18 | 03/26/2022 | 05:05:37 | 76.91, -13.82 | 94.16 | 0.76 | 13 |

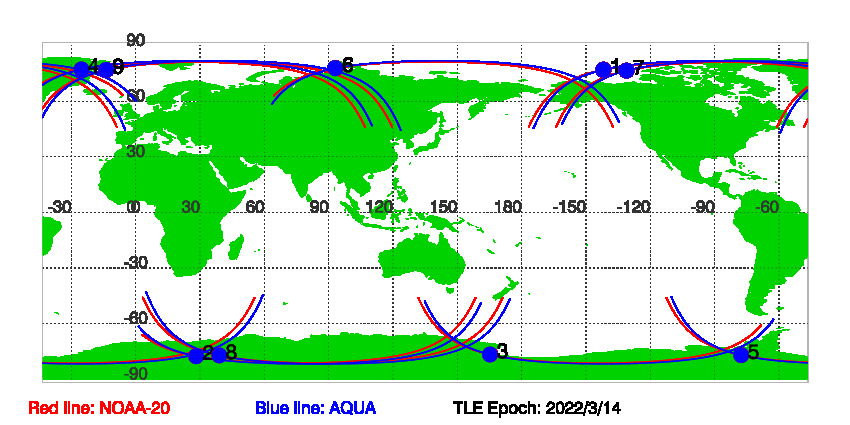

Figure of NOAA-20 and AQUA satellite orbits during SNOs since TLE Epoch: 3/14/2022
Download SNOs between NOAA-20 and AQUA since TLE EPOCH: 03/14/2022 in txt file.
Historial Predications of SNOs between NOAA-20 and AQUA
