Simultaneous Nadir Overpasses (SNOs) Predictions
Prediction of SNOs between NOAA-20 and AQUA Satellite Orbit:
Table of predicted SNOs for the next 14.0 days since TLE Epoch: 12/17/2021
| Index | Date (NOAA-20) | Time (NOAA-20) | Lat,Lon (NOAA-20) | SZA (NOAA-20 ) | Date (AQUA) | Time (AQUA) | Lat,Lon (AQUA) | SZA (AQUA ) | Distance(km) | Time Diff (sec) |
| 1 | 12/17/2021 | 14:29:21 | 76.13,-157.92 | 119.64 | 12/17/2021 | 14:30:25 | 76.13,-157.98 | 119.59 | 1.45 | 64 |
| 2 | 12/17/2021 | 15:19:49 | -76.92, 12.35 | 61.29 | 12/17/2021 | 15:19:36 | -76.92, 12.35 | 61.28 | 0.15 | 13 |
| 3 | 12/20/2021 | 06:46:13 | 76.16, -42.04 | 119.74 | 12/20/2021 | 06:46:56 | 76.16, -41.99 | 119.68 | 1.53 | 43 |
| 4 | 12/20/2021 | 07:36:32 | -77.33, 129.90 | 61.67 | 12/20/2021 | 07:35:59 | -77.33, 129.78 | 61.62 | 2.91 | 33 |
| 5 | 12/22/2021 | 23:02:52 | 76.72, 75.83 | 119.14 | 12/22/2021 | 23:03:15 | 76.72, 75.74 | 119.15 | 2.34 | 23 |
| 6 | 12/22/2021 | 23:53:22 | -77.40,-114.02 | 61.69 | 12/22/2021 | 23:52:28 | -77.40,-114.05 | 61.63 | 0.79 | 54 |
| 7 | 12/25/2021 | 14:33:26 | -63.00, 0.26 | 47.12 | 12/25/2021 | 14:34:39 | -62.79, 1.61 | 47.59 | 72.14 | 73 |
| 8 | 12/25/2021 | 15:19:41 | 76.88,-167.77 | 118.98 | 12/25/2021 | 15:19:43 | 76.87,-167.82 | 118.98 | 1.21 | 2 |
| 9 | 12/25/2021 | 16:09:32 | -79.07, 11.10 | 63.93 | 12/25/2021 | 16:08:18 | -79.17, 10.69 | 63.82 | 14.19 | 74 |
| 10 | 12/28/2021 | 06:46:09 | -76.00, 137.45 | 60.03 | 12/28/2021 | 06:47:07 | -76.00, 137.50 | 60.10 | 1.60 | 58 |
| 11 | 12/28/2021 | 07:36:29 | 77.07, -51.19 | 118.70 | 12/28/2021 | 07:36:10 | 77.07, -51.22 | 118.72 | 1.01 | 19 |
| 12 | 12/30/2021 | 23:02:54 | -76.34,-105.58 | 60.52 | 12/30/2021 | 23:03:31 | -76.34,-105.54 | 60.56 | 1.19 | 37 |

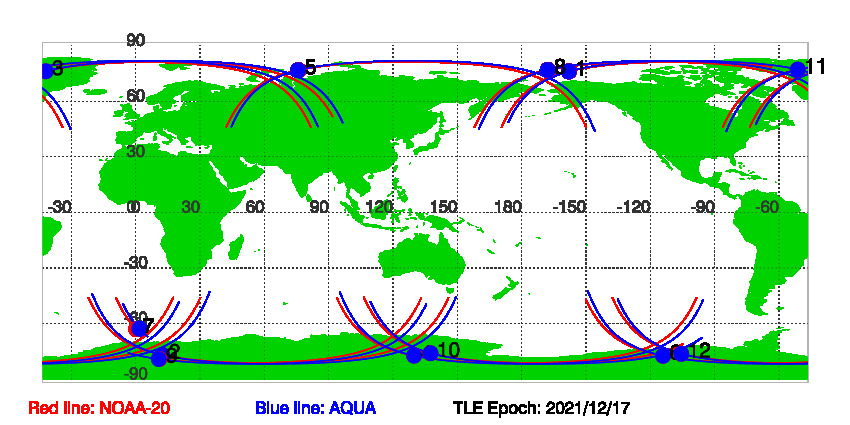

Figure of NOAA-20 and AQUA satellite orbits during SNOs since TLE Epoch: 12/17/2021
Download SNOs between NOAA-20 and AQUA since TLE EPOCH: 12/17/2021 in txt file.
Historial Predications of SNOs between NOAA-20 and AQUA
