Simultaneous Nadir Overpasses (SNOs) Predictions
Prediction of SNOs between NOAA-20 and AQUA Satellite Orbit:
Table of predicted SNOs for the next 14.0 days since TLE Epoch: 12/14/2021
| Index | Date (NOAA-20) | Time (NOAA-20) | Lat,Lon (NOAA-20) | SZA (NOAA-20 ) | Date (AQUA) | Time (AQUA) | Lat,Lon (AQUA) | SZA (AQUA ) | Distance(km) | Time Diff (sec) |
| 1 | 12/14/2021 | 23:03:05 | -76.56,-104.86 | 61.04 | 12/14/2021 | 23:03:12 | -76.56,-104.78 | 61.06 | 2.03 | 7 |
| 2 | 12/14/2021 | 23:53:28 | 77.48, 66.29 | 117.86 | 12/14/2021 | 23:52:18 | 77.48, 66.29 | 117.92 | 0.07 | 70 |
| 3 | 12/17/2021 | 14:29:21 | 76.10,-158.02 | 119.67 | 12/17/2021 | 14:30:25 | 76.10,-158.06 | 119.62 | 1.21 | 64 |
| 4 | 12/17/2021 | 15:19:48 | -76.94, 12.43 | 61.31 | 12/17/2021 | 15:19:35 | -76.94, 12.44 | 61.31 | 0.39 | 13 |
| 5 | 12/20/2021 | 06:46:13 | 76.13, -42.13 | 119.76 | 12/20/2021 | 06:46:56 | 76.14, -42.05 | 119.70 | 2.26 | 43 |
| 6 | 12/20/2021 | 07:36:33 | -77.27, 129.62 | 61.59 | 12/20/2021 | 07:36:00 | -77.26, 129.54 | 61.55 | 2.09 | 33 |
| 7 | 12/22/2021 | 23:02:55 | 76.61, 75.40 | 119.28 | 12/22/2021 | 23:03:18 | 76.61, 75.37 | 119.26 | 0.87 | 23 |
| 8 | 12/22/2021 | 23:53:25 | -77.30,-114.48 | 61.56 | 12/22/2021 | 23:52:31 | -77.30,-114.45 | 61.52 | 0.79 | 54 |
| 9 | 12/25/2021 | 14:33:50 | -61.70, -0.80 | 45.95 | 12/25/2021 | 14:35:03 | -61.47, 0.60 | 46.45 | 78.86 | 73 |
| 10 | 12/25/2021 | 15:19:45 | 76.73,-168.38 | 119.16 | 12/25/2021 | 15:19:47 | 76.73,-168.33 | 119.15 | 1.23 | 2 |

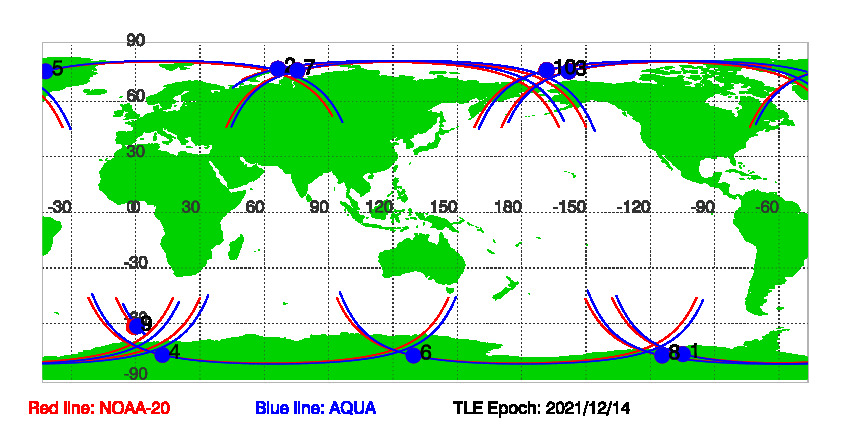

Figure of NOAA-20 and AQUA satellite orbits during SNOs since TLE Epoch: 12/14/2021
Download SNOs between NOAA-20 and AQUA since TLE EPOCH: 12/14/2021 in txt file.
Historial Predications of SNOs between NOAA-20 and AQUA
