Simultaneous Nadir Overpasses (SNOs) Predictions
Prediction of SNOs between NOAA-20 and AQUA Satellite Orbit:
Table of predicted SNOs for the next 14.0 days since TLE Epoch: 11/21/2021
| Index | Date (NOAA-20) | Time (NOAA-20) | Lat,Lon (NOAA-20) | SZA (NOAA-20 ) | Date (AQUA) | Time (AQUA) | Lat,Lon (AQUA) | SZA (AQUA ) | Distance(km) | Time Diff (sec) |
| 1 | 11/23/2021 | 14:29:37 | -76.42, 22.96 | 64.05 | 11/23/2021 | 14:30:01 | -76.42, 22.98 | 64.07 | 0.55 | 24 |
| 2 | 11/23/2021 | 15:20:02 | 77.26,-166.37 | 114.98 | 11/23/2021 | 15:19:09 | 77.26,-166.35 | 115.02 | 0.60 | 53 |
| 3 | 11/26/2021 | 05:58:54 | 66.68, -47.83 | 126.22 | 11/26/2021 | 06:00:07 | 66.52, -46.74 | 125.85 | 51.53 | 73 |
| 4 | 11/26/2021 | 06:46:18 | -76.91, 140.64 | 64.07 | 11/26/2021 | 06:46:19 | -76.90, 140.54 | 64.04 | 2.79 | 1 |
| 5 | 11/26/2021 | 07:34:48 | 81.10, -15.16 | 108.94 | 11/26/2021 | 07:33:35 | 81.47, -15.99 | 109.19 | 43.45 | 73 |
| 6 | 11/28/2021 | 22:12:43 | 76.11, 86.13 | 117.36 | 11/28/2021 | 22:13:37 | 76.11, 86.12 | 117.32 | 0.50 | 54 |
| 7 | 11/28/2021 | 23:03:08 | -77.04,-103.03 | 63.71 | 11/28/2021 | 23:02:45 | -77.04,-103.07 | 63.68 | 1.07 | 23 |
| 8 | 12/01/2021 | 14:29:30 | 76.39,-157.12 | 117.52 | 12/01/2021 | 14:30:00 | 76.39,-157.11 | 117.49 | 0.28 | 30 |
| 9 | 12/01/2021 | 15:19:56 | -77.26, 13.67 | 63.50 | 12/01/2021 | 15:19:09 | -77.26, 13.67 | 63.46 | 0.19 | 47 |
| 10 | 12/04/2021 | 06:46:16 | 76.70, -40.16 | 117.59 | 12/04/2021 | 06:46:22 | 76.70, -40.16 | 117.58 | 0.19 | 6 |

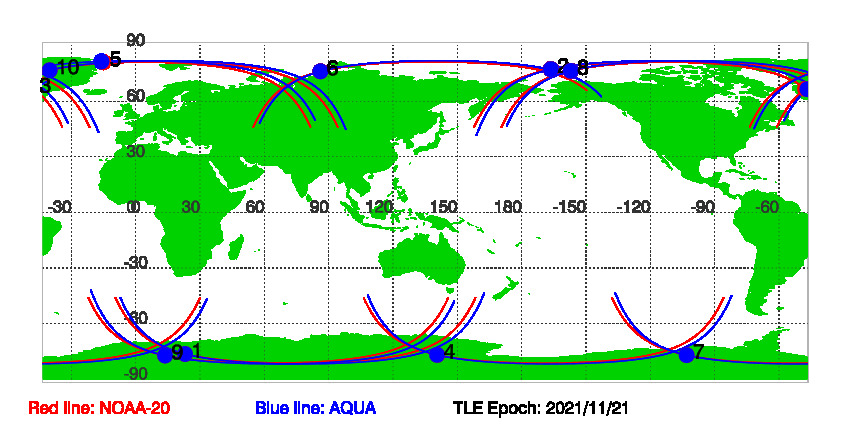

Figure of NOAA-20 and AQUA satellite orbits during SNOs since TLE Epoch: 11/21/2021
Download SNOs between NOAA-20 and AQUA since TLE EPOCH: 11/21/2021 in txt file.
Historial Predications of SNOs between NOAA-20 and AQUA
