Simultaneous Nadir Overpasses (SNOs) Predictions
Prediction of SNOs between NOAA-20 and AQUA Satellite Orbit:
Table of predicted SNOs for the next 14.0 days since TLE Epoch: 10/13/2021
| Index | Date (NOAA-20) | Time (NOAA-20) | Lat,Lon (NOAA-20) | SZA (NOAA-20 ) | Date (AQUA) | Time (AQUA) | Lat,Lon (AQUA) | SZA (AQUA ) | Distance(km) | Time Diff (sec) |
| 1 | 10/14/2021 | 13:39:34 | -75.67, 32.92 | 74.99 | 10/14/2021 | 13:40:34 | -75.68, 32.99 | 75.07 | 2.23 | 60 |
| 2 | 10/14/2021 | 14:29:56 | 76.67,-156.26 | 103.86 | 10/14/2021 | 14:29:39 | 76.67,-156.19 | 103.86 | 2.05 | 17 |
| 3 | 10/17/2021 | 05:56:15 | -76.22, 150.54 | 74.70 | 10/17/2021 | 05:56:50 | -76.22, 150.54 | 74.73 | 0.17 | 35 |
| 4 | 10/17/2021 | 06:46:39 | 77.10, -38.73 | 104.27 | 10/17/2021 | 06:45:57 | 77.10, -38.74 | 104.31 | 0.35 | 42 |
| 5 | 10/19/2021 | 22:13:05 | -76.39, -93.04 | 73.98 | 10/19/2021 | 22:13:14 | -76.40, -92.97 | 74.01 | 2.23 | 9 |
| 6 | 10/19/2021 | 23:03:30 | 77.23, 77.57 | 105.04 | 10/19/2021 | 23:02:22 | 77.23, 77.65 | 105.08 | 1.99 | 68 |
| 7 | 10/22/2021 | 13:39:22 | 75.97,-146.05 | 107.40 | 10/22/2021 | 13:40:23 | 75.97,-146.10 | 107.36 | 1.40 | 61 |
| 8 | 10/22/2021 | 14:29:45 | -77.01, 25.11 | 73.81 | 10/22/2021 | 14:29:29 | -77.00, 25.01 | 73.77 | 2.74 | 16 |
| 9 | 10/25/2021 | 05:56:08 | 76.33, -29.04 | 107.88 | 10/25/2021 | 05:56:43 | 76.32, -29.08 | 107.86 | 1.30 | 35 |

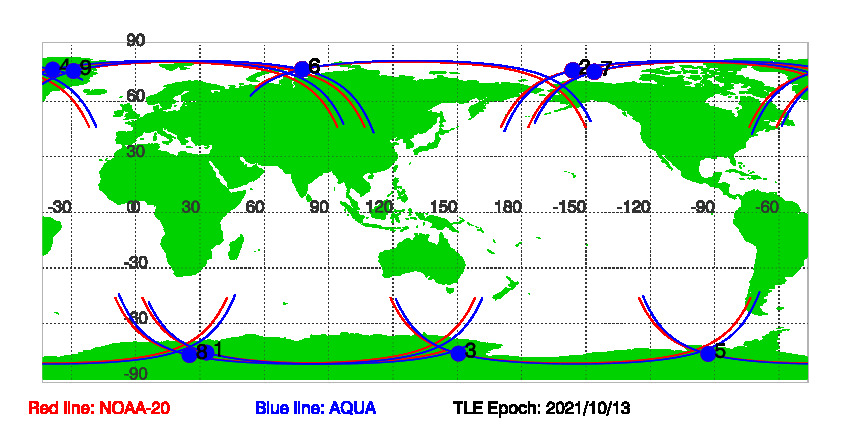

Figure of NOAA-20 and AQUA satellite orbits during SNOs since TLE Epoch: 10/13/2021
Download SNOs between NOAA-20 and AQUA since TLE EPOCH: 10/13/2021 in txt file.
Historial Predications of SNOs between NOAA-20 and AQUA
