Simultaneous Nadir Overpasses (SNOs) Predictions
Prediction of SNOs between NOAA-20 and AQUA Satellite Orbit:
Table of predicted SNOs for the next 14.0 days since TLE Epoch: 10/11/2021
| Index | Date (NOAA-20) | Time (NOAA-20) | Lat,Lon (NOAA-20) | SZA (NOAA-20 ) | Date (AQUA) | Time (AQUA) | Lat,Lon (AQUA) | SZA (AQUA ) | Distance(km) | Time Diff (sec) |
| 1 | 10/11/2021 | 22:13:01 | 76.70, 88.07 | 102.89 | 10/11/2021 | 22:13:10 | 76.68, 87.97 | 102.91 | 2.89 | 9 |
| 2 | 10/11/2021 | 23:03:35 | -77.21,-102.50 | 77.74 | 10/11/2021 | 23:02:26 | -77.22,-102.41 | 77.70 | 2.46 | 69 |
| 3 | 10/14/2021 | 13:39:34 | -75.65, 32.87 | 74.98 | 10/14/2021 | 13:40:34 | -75.66, 32.95 | 75.05 | 2.41 | 60 |
| 4 | 10/14/2021 | 14:29:55 | 76.69,-156.16 | 103.83 | 10/14/2021 | 14:29:38 | 76.70,-156.08 | 103.83 | 2.20 | 17 |
| 5 | 10/17/2021 | 05:56:17 | -76.16, 150.33 | 74.62 | 10/17/2021 | 05:56:52 | -76.16, 150.35 | 74.66 | 0.49 | 35 |
| 6 | 10/17/2021 | 06:46:40 | 77.09, -38.80 | 104.29 | 10/17/2021 | 06:45:58 | 77.09, -38.80 | 104.33 | 0.20 | 42 |
| 7 | 10/19/2021 | 22:12:58 | -76.69, -91.94 | 74.33 | 10/19/2021 | 22:13:08 | -76.68, -92.03 | 74.32 | 2.59 | 10 |
| 8 | 10/19/2021 | 23:03:23 | 77.51, 78.82 | 104.69 | 10/19/2021 | 23:02:16 | 77.50, 78.71 | 104.78 | 2.97 | 67 |
| 9 | 10/22/2021 | 13:39:25 | 75.81,-146.58 | 107.58 | 10/22/2021 | 13:40:26 | 75.82,-146.57 | 107.52 | 0.42 | 61 |

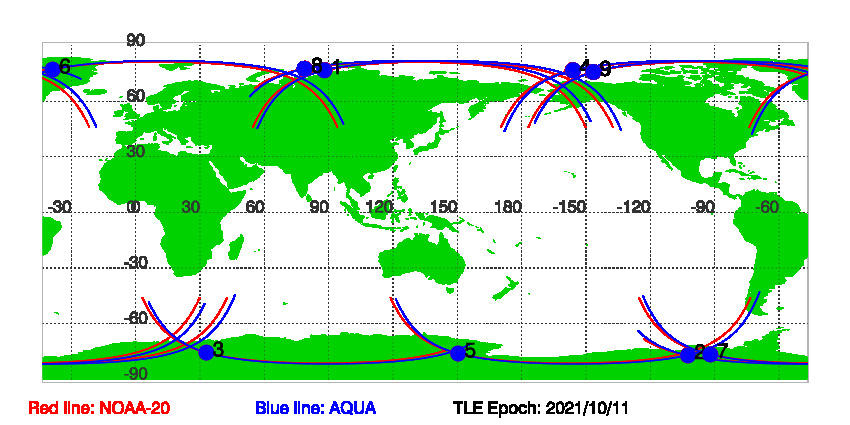

Figure of NOAA-20 and AQUA satellite orbits during SNOs since TLE Epoch: 10/11/2021
Download SNOs between NOAA-20 and AQUA since TLE EPOCH: 10/11/2021 in txt file.
