Simultaneous Nadir Overpasses (SNOs) Predictions
Prediction of SNOs between NOAA-20 and AQUA Satellite Orbit:
Table of predicted SNOs for the next 14.0 days since TLE Epoch: 10/7/2021
| Index | Date (NOAA-20) | Time (NOAA-20) | Lat,Lon (NOAA-20) | SZA (NOAA-20 ) | Date (AQUA) | Time (AQUA) | Lat,Lon (AQUA) | SZA (AQUA ) | Distance(km) | Time Diff (sec) |
| 1 | 10/09/2021 | 05:56:23 | 75.99, -30.24 | 102.76 | 10/09/2021 | 05:56:56 | 76.00, -30.15 | 102.71 | 2.66 | 33 |
| 2 | 10/09/2021 | 06:46:48 | -76.93, 140.55 | 78.34 | 10/09/2021 | 06:46:04 | -76.94, 140.64 | 78.33 | 2.60 | 44 |
| 3 | 10/11/2021 | 22:13:10 | 76.32, 86.66 | 103.34 | 10/11/2021 | 22:13:18 | 76.33, 86.76 | 103.30 | 2.94 | 8 |
| 4 | 10/11/2021 | 23:03:36 | -77.20,-102.57 | 77.72 | 10/11/2021 | 23:02:27 | -77.20,-102.48 | 77.68 | 2.41 | 69 |
| 5 | 10/14/2021 | 13:39:34 | -75.64, 32.82 | 74.96 | 10/14/2021 | 13:40:34 | -75.64, 32.90 | 75.03 | 2.40 | 60 |
| 6 | 10/14/2021 | 14:29:55 | 76.68,-156.23 | 103.85 | 10/14/2021 | 14:29:38 | 76.68,-156.15 | 103.85 | 2.14 | 17 |
| 7 | 10/17/2021 | 05:56:17 | -76.14, 150.28 | 74.61 | 10/17/2021 | 05:56:52 | -76.14, 150.30 | 74.64 | 0.58 | 35 |
| 8 | 10/17/2021 | 06:46:40 | 77.07, -38.87 | 104.31 | 10/17/2021 | 06:45:58 | 77.07, -38.86 | 104.34 | 0.26 | 42 |
| 9 | 10/19/2021 | 22:12:59 | -76.68, -91.98 | 74.32 | 10/19/2021 | 22:13:09 | -76.67, -92.06 | 74.31 | 2.36 | 10 |

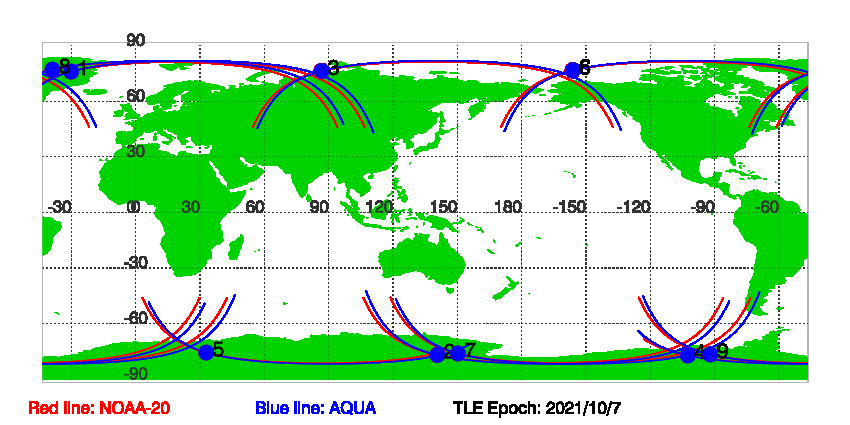

Figure of NOAA-20 and AQUA satellite orbits during SNOs since TLE Epoch: 10/7/2021
Download SNOs between NOAA-20 and AQUA since TLE EPOCH: 10/07/2021 in txt file.
Historial Predications of SNOs between NOAA-20 and AQUA
