Simultaneous Nadir Overpasses (SNOs) Predictions
Prediction of SNOs between NOAA-20 and AQUA Satellite Orbit:
Table of predicted SNOs for the next 14.0 days since TLE Epoch: 9/24/2021
| Index | Date (NOAA-20) | Time (NOAA-20) | Lat,Lon (NOAA-20) | SZA (NOAA-20 ) | Date (AQUA) | Time (AQUA) | Lat,Lon (AQUA) | SZA (AQUA ) | Distance(km) | Time Diff (sec) |
| 1 | 09/25/2021 | 21:26:38 | -63.58,-102.65 | 69.18 | 09/25/2021 | 21:27:51 | -63.40,-101.42 | 69.54 | 64.71 | 73 |
| 2 | 09/25/2021 | 22:13:07 | 76.73, 88.16 | 97.09 | 09/25/2021 | 22:13:09 | 76.72, 88.07 | 97.11 | 2.34 | 2 |
| 3 | 09/25/2021 | 23:02:49 | -79.27, -90.94 | 86.36 | 09/25/2021 | 23:01:35 | -79.39, -91.44 | 86.24 | 17.40 | 74 |
| 4 | 09/28/2021 | 13:39:34 | -75.93, 33.74 | 81.00 | 09/28/2021 | 13:40:29 | -75.93, 33.71 | 81.04 | 0.84 | 55 |
| 5 | 09/28/2021 | 14:29:54 | 77.00,-154.96 | 97.72 | 09/28/2021 | 14:29:32 | 76.99,-155.07 | 97.77 | 2.97 | 22 |
| 6 | 10/01/2021 | 05:56:19 | -76.35, 150.98 | 80.53 | 10/01/2021 | 05:56:50 | -76.34, 150.91 | 80.54 | 2.16 | 31 |
| 7 | 10/01/2021 | 06:46:48 | 77.01, -39.14 | 98.68 | 10/01/2021 | 06:46:01 | 77.02, -39.08 | 98.71 | 1.69 | 47 |
| 8 | 10/03/2021 | 22:13:12 | -76.41, -93.04 | 79.63 | 10/03/2021 | 22:13:18 | -76.41, -92.98 | 79.65 | 1.62 | 6 |
| 9 | 10/03/2021 | 23:03:34 | 77.37, 78.14 | 99.21 | 10/03/2021 | 23:02:23 | 77.37, 78.13 | 99.28 | 0.45 | 71 |
| 10 | 10/06/2021 | 13:39:30 | 75.95,-146.17 | 101.86 | 10/06/2021 | 13:40:29 | 75.95,-146.23 | 101.82 | 1.87 | 59 |

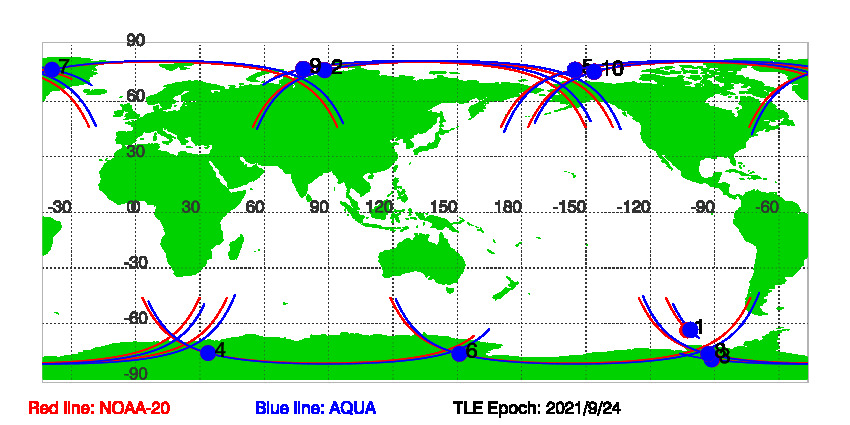

Figure of NOAA-20 and AQUA satellite orbits during SNOs since TLE Epoch: 9/24/2021
Download SNOs between NOAA-20 and AQUA since TLE EPOCH: 09/24/2021 in txt file.
Historial Predications of SNOs between NOAA-20 and AQUA
