Simultaneous Nadir Overpasses (SNOs) Predictions
Prediction of SNOs between NOAA-20 and AQUA Satellite Orbit:
Table of predicted SNOs for the next 14.0 days since TLE Epoch: 7/11/2021
| Index | Date (NOAA-20) | Time (NOAA-20) | Lat,Lon (NOAA-20) | SZA (NOAA-20 ) | Date (AQUA) | Time (AQUA) | Lat,Lon (AQUA) | SZA (AQUA ) | Distance(km) | Time Diff (sec) |
| 1 | 07/13/2021 | 05:56:38 | -76.07, 149.98 | 103.89 | 07/13/2021 | 05:56:46 | -76.08, 150.07 | 103.92 | 2.59 | 8 |
| 2 | 07/13/2021 | 06:46:55 | 77.28, -38.06 | 74.58 | 07/13/2021 | 06:45:47 | 77.27, -38.16 | 74.66 | 2.45 | 68 |
| 3 | 07/15/2021 | 21:22:58 | 75.53, 96.67 | 77.20 | 07/15/2021 | 21:23:59 | 75.53, 96.66 | 77.15 | 0.37 | 61 |
| 4 | 07/15/2021 | 22:13:18 | -76.72, -91.90 | 104.28 | 07/15/2021 | 22:13:02 | -76.71, -91.98 | 104.25 | 2.01 | 16 |
| 5 | 07/18/2021 | 13:39:47 | 75.83,-146.63 | 77.30 | 07/18/2021 | 13:40:23 | 75.83,-146.60 | 77.27 | 0.69 | 36 |
| 6 | 07/18/2021 | 14:30:09 | -76.91, 24.61 | 104.06 | 07/18/2021 | 14:29:28 | -76.90, 24.58 | 104.02 | 1.08 | 41 |
| 7 | 07/21/2021 | 05:56:35 | 76.16, -29.73 | 77.39 | 07/21/2021 | 05:56:46 | 76.16, -29.69 | 77.37 | 1.35 | 11 |
| 8 | 07/21/2021 | 06:46:59 | -77.13, 141.32 | 103.86 | 07/21/2021 | 06:45:53 | -77.13, 141.31 | 103.81 | 0.53 | 66 |
| 9 | 07/23/2021 | 21:23:02 | -75.43, -83.66 | 101.20 | 07/23/2021 | 21:24:05 | -75.43, -83.63 | 101.26 | 0.69 | 63 |

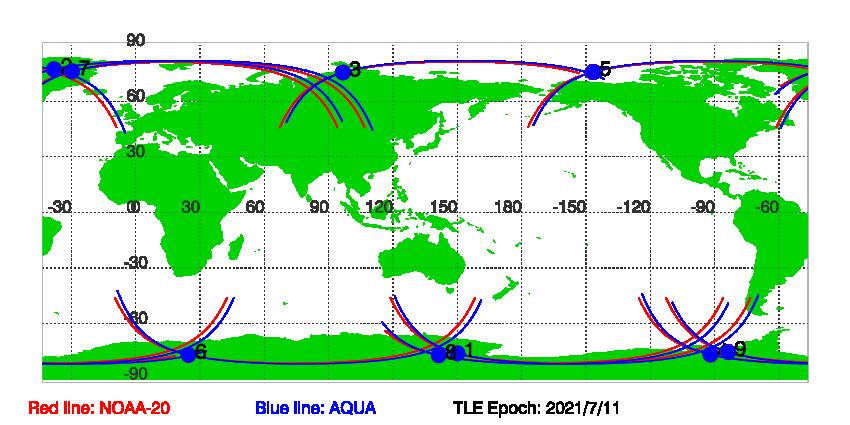

Figure of NOAA-20 and AQUA satellite orbits during SNOs since TLE Epoch: 7/11/2021
Download SNOs between NOAA-20 and AQUA since TLE EPOCH: 07/11/2021 in txt file.
Historial Predications of SNOs between NOAA-20 and AQUA
