Simultaneous Nadir Overpasses (SNOs) Predictions
Prediction of SNOs between NOAA-20 and AQUA Satellite Orbit:
Table of predicted SNOs for the next 14.0 days since TLE Epoch: 7/1/2021
| Index | Date (NOAA-20) | Time (NOAA-20) | Lat,Lon (NOAA-20) | SZA (NOAA-20 ) | Date (AQUA) | Time (AQUA) | Lat,Lon (AQUA) | SZA (AQUA ) | Distance(km) | Time Diff (sec) |
| 1 | 07/02/2021 | 13:39:45 | 75.87,-146.46 | 75.11 | 07/02/2021 | 13:40:15 | 75.87,-146.44 | 75.08 | 0.66 | 30 |
| 2 | 07/02/2021 | 14:30:07 | -76.95, 24.79 | 106.25 | 07/02/2021 | 14:29:20 | -76.94, 24.76 | 106.21 | 0.94 | 47 |
| 3 | 07/05/2021 | 05:56:28 | 76.44, -28.72 | 74.65 | 07/05/2021 | 05:56:34 | 76.43, -28.80 | 74.67 | 2.34 | 6 |
| 4 | 07/05/2021 | 06:47:00 | -77.05, 141.00 | 106.14 | 07/05/2021 | 06:45:48 | -77.06, 141.06 | 106.10 | 1.72 | 72 |
| 5 | 07/07/2021 | 21:22:57 | -75.63, -83.01 | 104.06 | 07/07/2021 | 21:23:55 | -75.63, -83.05 | 104.10 | 1.06 | 58 |
| 6 | 07/07/2021 | 22:13:20 | 76.59, 87.61 | 74.76 | 07/07/2021 | 22:13:01 | 76.59, 87.61 | 74.77 | 0.17 | 19 |
| 7 | 07/10/2021 | 13:39:48 | -75.84, 33.41 | 103.97 | 07/10/2021 | 13:40:21 | -75.84, 33.44 | 104.01 | 1.13 | 33 |
| 8 | 07/10/2021 | 14:30:12 | 76.74,-156.05 | 74.91 | 07/10/2021 | 14:29:28 | 76.74,-155.98 | 74.92 | 2.10 | 44 |
| 9 | 07/13/2021 | 05:56:38 | -76.04, 149.84 | 103.84 | 07/13/2021 | 05:56:46 | -76.05, 149.94 | 103.87 | 2.89 | 8 |

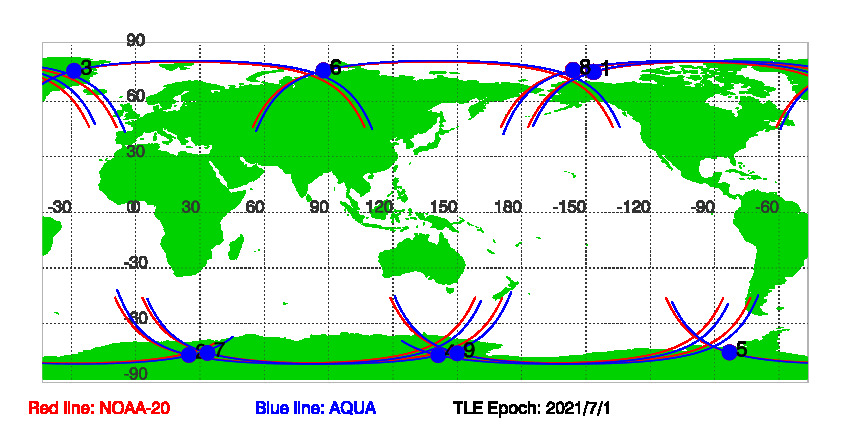

Figure of NOAA-20 and AQUA satellite orbits during SNOs since TLE Epoch: 7/1/2021
Download SNOs between NOAA-20 and AQUA since TLE EPOCH: 07/01/2021 in txt file.
Historial Predications of SNOs between NOAA-20 and AQUA
