Simultaneous Nadir Overpasses (SNOs) Predictions
Prediction of SNOs between NOAA-20 and AQUA Satellite Orbit:
Table of predicted SNOs for the next 14.0 days since TLE Epoch: 1/26/2021
| Index | Date (NOAA-20) | Time (NOAA-20) | Lat,Lon (NOAA-20) | SZA (NOAA-20 ) | Date (AQUA) | Time (AQUA) | Lat,Lon (AQUA) | SZA (AQUA ) | Distance(km) | Time Diff (sec) |
| 1 | 01/26/2021 | 05:56:18 | 75.52, -31.55 | 116.63 | 01/26/2021 | 05:56:57 | 75.52, -31.59 | 116.60 | 1.41 | 39 |
| 2 | 01/26/2021 | 06:46:45 | -76.39, 138.70 | 64.42 | 01/26/2021 | 06:46:07 | -76.40, 138.74 | 64.40 | 1.24 | 38 |
| 3 | 01/28/2021 | 22:13:10 | 75.67, 84.70 | 115.80 | 01/28/2021 | 22:13:24 | 75.68, 84.74 | 115.77 | 1.14 | 14 |
| 4 | 01/28/2021 | 23:03:29 | -76.89,-103.61 | 65.70 | 01/28/2021 | 23:02:27 | -76.88,-103.70 | 65.62 | 2.39 | 62 |
| 5 | 01/31/2021 | 13:39:37 | -74.93, 30.93 | 64.04 | 01/31/2021 | 13:40:44 | -74.93, 30.93 | 64.10 | 0.23 | 67 |
| 6 | 01/31/2021 | 14:29:52 | 76.28,-157.47 | 114.37 | 01/31/2021 | 14:29:42 | 76.27,-157.56 | 114.41 | 2.77 | 10 |
| 7 | 02/03/2021 | 05:56:26 | -75.23, 147.56 | 65.11 | 02/03/2021 | 05:57:08 | -75.23, 147.60 | 65.16 | 1.33 | 42 |
| 8 | 02/03/2021 | 06:46:42 | 76.51, -40.84 | 113.35 | 02/03/2021 | 06:46:07 | 76.51, -40.89 | 113.39 | 1.35 | 35 |
| 9 | 02/05/2021 | 22:13:14 | -75.52, -95.78 | 66.23 | 02/05/2021 | 22:13:31 | -75.53, -95.71 | 66.26 | 2.27 | 17 |
| 10 | 02/05/2021 | 23:03:31 | 76.74, 75.80 | 112.29 | 02/05/2021 | 23:02:31 | 76.74, 75.78 | 112.34 | 0.49 | 60 |
| 11 | 02/08/2021 | 13:39:37 | 74.85,-149.29 | 113.75 | 02/08/2021 | 13:40:46 | 74.85,-149.28 | 113.69 | 0.37 | 69 |
| 12 | 02/08/2021 | 14:30:02 | -75.85, 21.06 | 67.43 | 02/08/2021 | 14:29:54 | -75.86, 21.15 | 67.45 | 2.61 | 8 |

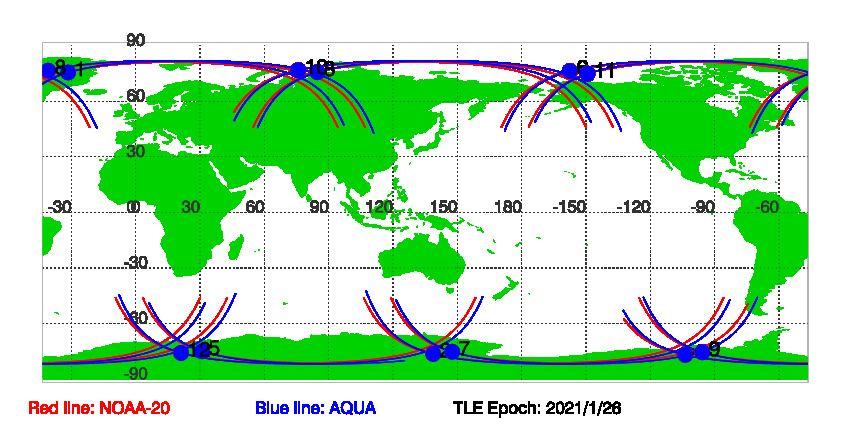

Figure of NOAA-20 and AQUA satellite orbits during SNOs since TLE Epoch: 1/26/2021
Download SNOs between NOAA-20 and AQUA since TLE EPOCH: 01/26/2021 in txt file.
Historial Predications of SNOs between NOAA-20 and AQUA
