Simultaneous Nadir Overpasses (SNOs) Predictions
Prediction of SNOs between NOAA-20 and AQUA Satellite Orbit:
Table of predicted SNOs for the next 14.0 days since TLE Epoch: 12/25/2020
| Index | Date (NOAA-20) | Time (NOAA-20) | Lat,Lon (NOAA-20) | SZA (NOAA-20 ) | Date (AQUA) | Time (AQUA) | Lat,Lon (AQUA) | SZA (AQUA ) | Distance(km) | Time Diff (sec) |
| 1 | 12/25/2020 | 05:56:18 | 75.43, -31.87 | 120.65 | 12/25/2020 | 05:57:01 | 75.43, -31.87 | 120.61 | 0.09 | 43 |
| 2 | 12/25/2020 | 06:46:41 | -76.48, 138.97 | 60.55 | 12/25/2020 | 06:46:07 | -76.48, 138.97 | 60.52 | 0.08 | 34 |
| 3 | 12/27/2020 | 22:13:06 | 75.74, 84.89 | 120.27 | 12/27/2020 | 22:13:23 | 75.75, 84.91 | 120.25 | 0.65 | 17 |
| 4 | 12/27/2020 | 23:03:30 | -76.73,-104.29 | 60.89 | 12/27/2020 | 23:02:30 | -76.74,-104.26 | 60.85 | 0.81 | 60 |
| 5 | 12/30/2020 | 13:39:36 | -74.88, 30.72 | 58.85 | 12/30/2020 | 13:40:44 | -74.88, 30.77 | 58.92 | 1.53 | 68 |
| 6 | 12/30/2020 | 14:29:53 | 76.14,-158.01 | 119.72 | 12/30/2020 | 14:29:44 | 76.14,-157.99 | 119.73 | 0.51 | 9 |
| 7 | 01/02/2021 | 05:56:22 | -75.33, 147.82 | 59.50 | 01/02/2021 | 05:57:04 | -75.34, 147.86 | 59.55 | 1.32 | 42 |
| 8 | 01/02/2021 | 06:46:41 | 76.48, -41.00 | 119.17 | 01/02/2021 | 06:46:06 | 76.48, -41.02 | 119.21 | 0.43 | 35 |
| 9 | 01/04/2021 | 22:13:08 | -75.78, -95.01 | 60.20 | 01/04/2021 | 22:13:24 | -75.78, -94.99 | 60.22 | 0.34 | 16 |
| 10 | 01/04/2021 | 23:03:27 | 76.90, 76.40 | 118.46 | 01/04/2021 | 23:02:26 | 76.90, 76.33 | 118.53 | 2.01 | 61 |
| 11 | 01/07/2021 | 13:39:37 | 74.81,-149.47 | 120.66 | 01/07/2021 | 13:40:43 | 74.82,-149.39 | 120.57 | 2.39 | 66 |

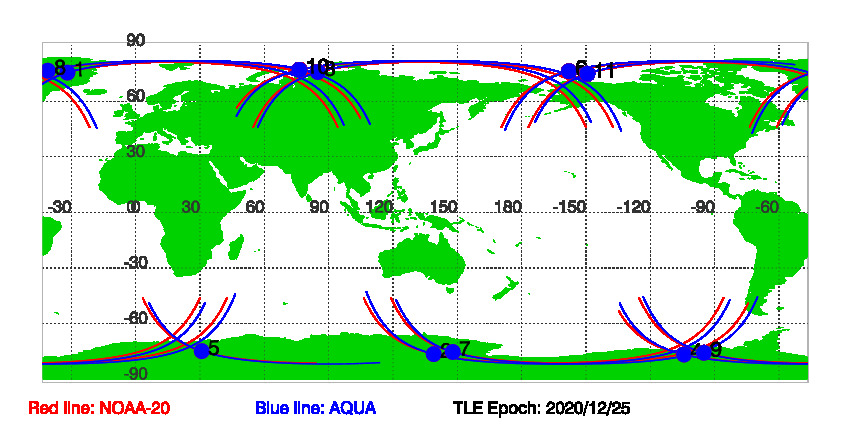

Figure of NOAA-20 and AQUA satellite orbits during SNOs since TLE Epoch: 12/25/2020
Download SNOs between NOAA-20 and AQUA since TLE EPOCH: 12/25/2020 in txt file.
Historial Predications of SNOs between NOAA-20 and AQUA
