Simultaneous Nadir Overpasses (SNOs) Predictions
Prediction of SNOs between NOAA-20 and AQUA Satellite Orbit:
Table of predicted SNOs for the next 14.0 days since TLE Epoch: 12/18/2020
| Index | Date (NOAA-20) | Time (NOAA-20) | Lat,Lon (NOAA-20) | SZA (NOAA-20 ) | Date (AQUA) | Time (AQUA) | Lat,Lon (AQUA) | SZA (AQUA ) | Distance(km) | Time Diff (sec) |
| 1 | 12/19/2020 | 22:13:08 | -75.66, -95.41 | 59.70 | 12/19/2020 | 22:13:25 | -75.66, -95.33 | 59.74 | 2.44 | 17 |
| 2 | 12/19/2020 | 23:03:31 | 76.62, 75.28 | 119.19 | 12/19/2020 | 23:02:31 | 76.63, 75.36 | 119.23 | 2.34 | 60 |
| 3 | 12/22/2020 | 13:39:28 | 75.14,-148.54 | 120.96 | 12/22/2020 | 13:40:37 | 75.13,-148.58 | 120.91 | 1.37 | 69 |
| 4 | 12/22/2020 | 14:29:50 | -76.24, 22.34 | 60.30 | 12/22/2020 | 14:29:42 | -76.24, 22.30 | 60.28 | 1.35 | 8 |
| 5 | 12/25/2020 | 05:56:17 | 75.45, -31.81 | 120.63 | 12/25/2020 | 05:57:00 | 75.45, -31.81 | 120.59 | 0.14 | 43 |
| 6 | 12/25/2020 | 06:46:41 | -76.46, 138.90 | 60.53 | 12/25/2020 | 06:46:07 | -76.46, 138.90 | 60.50 | 0.17 | 34 |
| 7 | 12/27/2020 | 22:13:06 | 75.77, 84.95 | 120.24 | 12/27/2020 | 22:13:23 | 75.77, 84.97 | 120.22 | 0.64 | 17 |
| 8 | 12/27/2020 | 23:03:31 | -76.71,-104.36 | 60.87 | 12/27/2020 | 23:02:31 | -76.72,-104.33 | 60.82 | 0.93 | 60 |
| 9 | 12/30/2020 | 13:39:37 | -74.86, 30.67 | 58.82 | 12/30/2020 | 13:40:45 | -74.87, 30.72 | 58.91 | 1.77 | 68 |
| 10 | 12/30/2020 | 14:29:54 | 76.12,-158.09 | 119.75 | 12/30/2020 | 14:29:45 | 76.12,-158.07 | 119.75 | 0.66 | 9 |

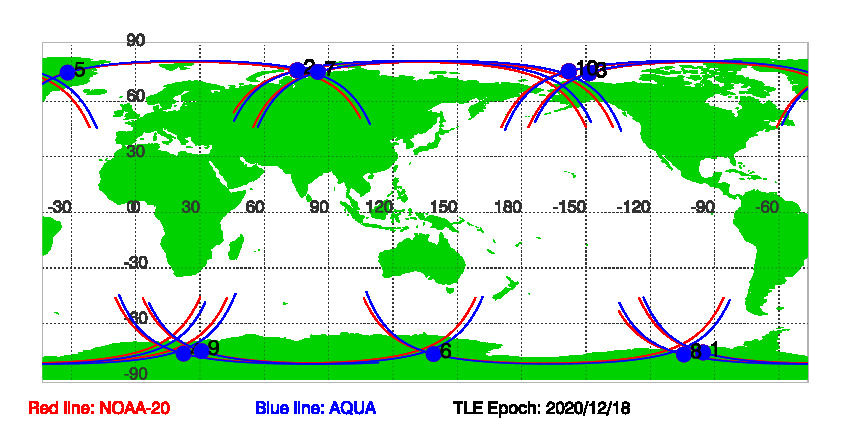

Figure of NOAA-20 and AQUA satellite orbits during SNOs since TLE Epoch: 12/18/2020
Download SNOs between NOAA-20 and AQUA since TLE EPOCH: 12/18/2020 in txt file.
Historial Predications of SNOs between NOAA-20 and AQUA
