Simultaneous Nadir Overpasses (SNOs) Predictions
Prediction of SNOs between NOAA-20 and AQUA Satellite Orbit:
Table of predicted SNOs for the next 14.0 days since TLE Epoch: 11/15/2020
| Index | Date (NOAA-20) | Time (NOAA-20) | Lat,Lon (NOAA-20) | SZA (NOAA-20 ) | Date (AQUA) | Time (AQUA) | Lat,Lon (AQUA) | SZA (AQUA ) | Distance(km) | Time Diff (sec) |
| 1 | 11/17/2020 | 22:12:50 | -76.02, -94.21 | 64.84 | 11/17/2020 | 22:13:17 | -76.01, -94.31 | 64.84 | 2.92 | 27 |
| 2 | 11/17/2020 | 23:03:15 | 76.88, 76.28 | 114.18 | 11/17/2020 | 23:02:25 | 76.87, 76.21 | 114.25 | 1.96 | 50 |
| 3 | 11/20/2020 | 13:41:05 | 69.78,-159.62 | 122.16 | 11/20/2020 | 13:42:18 | 69.69,-158.91 | 121.90 | 29.01 | 73 |
| 4 | 11/20/2020 | 14:29:40 | -76.27, 22.42 | 64.49 | 11/20/2020 | 14:29:39 | -76.26, 22.36 | 64.47 | 1.58 | 1 |
| 5 | 11/20/2020 | 15:16:53 | 81.14,-106.63 | 104.49 | 11/20/2020 | 15:15:40 | 81.74,-106.00 | 104.82 | 67.06 | 73 |
| 6 | 11/23/2020 | 05:56:11 | 75.31, -32.25 | 117.16 | 11/23/2020 | 05:56:59 | 75.32, -32.20 | 117.10 | 1.39 | 48 |
| 7 | 11/23/2020 | 06:46:30 | -76.55, 139.23 | 64.22 | 11/23/2020 | 06:46:01 | -76.55, 139.20 | 64.19 | 0.94 | 29 |
| 8 | 11/25/2020 | 22:12:58 | 75.75, 84.89 | 117.24 | 11/25/2020 | 22:13:18 | 75.76, 84.94 | 117.21 | 1.65 | 20 |
| 9 | 11/25/2020 | 23:03:19 | -76.88,-103.74 | 64.05 | 11/25/2020 | 23:02:22 | -76.88,-103.78 | 63.99 | 1.02 | 57 |
| 10 | 11/28/2020 | 13:39:23 | -75.16, 31.51 | 61.61 | 11/28/2020 | 13:40:32 | -75.16, 31.49 | 61.67 | 0.62 | 69 |
| 11 | 11/28/2020 | 14:29:46 | 76.13,-158.06 | 117.33 | 11/28/2020 | 14:29:38 | 76.14,-158.02 | 117.32 | 1.13 | 8 |

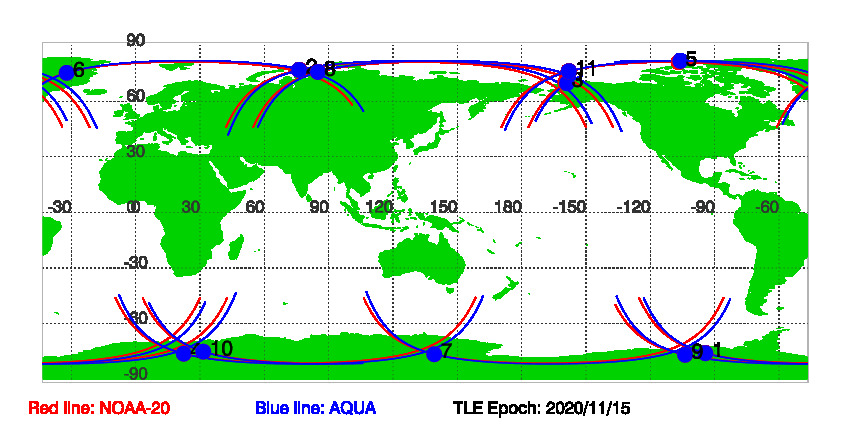

Figure of NOAA-20 and AQUA satellite orbits during SNOs since TLE Epoch: 11/15/2020
Download SNOs between NOAA-20 and AQUA since TLE EPOCH: 11/15/2020 in txt file.
Historical Predications of SNOs between NOAA-20 and AQUA
