Simultaneous Nadir Overpasses (SNOs) Predictions
Prediction of SNOs between NOAA-20 and AQUA Satellite Orbit:
Table of predicted SNOs for the next 14.0 days since TLE Epoch: 11/14/2020
| Index | Date (NOAA-20) | Time (NOAA-20) | Lat,Lon (NOAA-20) | SZA (NOAA-20 ) | Date (AQUA) | Time (AQUA) | Lat,Lon (AQUA) | SZA (AQUA ) | Distance(km) | Time Diff (sec) |
| 1 | 11/15/2020 | 05:56:09 | -75.29, 147.70 | 64.70 | 11/15/2020 | 05:57:03 | -75.30, 147.72 | 64.76 | 0.83 | 54 |
| 2 | 11/15/2020 | 06:46:31 | 76.31, -41.63 | 114.17 | 11/15/2020 | 06:46:08 | 76.32, -41.56 | 114.18 | 1.99 | 23 |
| 3 | 11/17/2020 | 22:13:00 | -75.55, -95.75 | 64.32 | 11/17/2020 | 22:13:26 | -75.56, -95.66 | 64.37 | 2.91 | 26 |
| 4 | 11/17/2020 | 23:03:15 | 76.87, 76.24 | 114.20 | 11/17/2020 | 23:02:25 | 76.86, 76.17 | 114.26 | 2.00 | 50 |
| 5 | 11/20/2020 | 13:41:05 | 69.77,-159.64 | 122.17 | 11/20/2020 | 13:42:18 | 69.68,-158.93 | 121.92 | 29.09 | 73 |
| 6 | 11/20/2020 | 14:29:41 | -76.26, 22.38 | 64.48 | 11/20/2020 | 14:29:40 | -76.25, 22.32 | 64.46 | 1.57 | 1 |
| 7 | 11/20/2020 | 15:16:54 | 81.14,-106.73 | 104.50 | 11/20/2020 | 15:15:41 | 81.74,-106.11 | 104.83 | 66.96 | 73 |
| 8 | 11/23/2020 | 05:56:10 | 75.35, -32.15 | 117.13 | 11/23/2020 | 05:56:58 | 75.36, -32.10 | 117.07 | 1.47 | 48 |
| 9 | 11/23/2020 | 06:46:30 | -76.54, 139.19 | 64.21 | 11/23/2020 | 06:46:01 | -76.54, 139.16 | 64.17 | 0.86 | 29 |
| 10 | 11/25/2020 | 22:12:58 | 75.74, 84.84 | 117.26 | 11/25/2020 | 22:13:18 | 75.74, 84.90 | 117.22 | 1.85 | 20 |
| 11 | 11/25/2020 | 23:03:19 | -76.86,-103.79 | 64.03 | 11/25/2020 | 23:02:22 | -76.86,-103.82 | 63.97 | 0.82 | 57 |
| 12 | 11/28/2020 | 13:39:23 | -75.14, 31.46 | 61.59 | 11/28/2020 | 13:40:32 | -75.14, 31.44 | 61.65 | 0.31 | 69 |
| 13 | 11/28/2020 | 14:29:46 | 76.12,-158.12 | 117.35 | 11/28/2020 | 14:29:38 | 76.12,-158.07 | 117.34 | 1.50 | 8 |

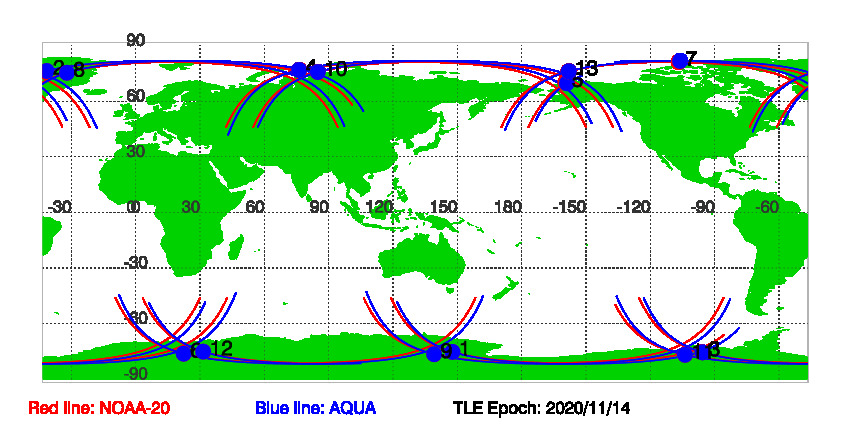

Figure of NOAA-20 and AQUA satellite orbits during SNOs since TLE Epoch: 11/14/2020
Download SNOs between NOAA-20 and AQUA since TLE EPOCH: 11/14/2020 in txt file.
Historical Predications of SNOs between NOAA-20 and AQUA
