Simultaneous Nadir Overpasses (SNOs) Predictions
Prediction of SNOs between NOAA-20 and AQUA Satellite Orbit:
Table of predicted SNOs for the next 14.0 days since TLE Epoch: 9/17/2020
| Index | Date (NOAA-20) | Time (NOAA-20) | Lat,Lon (NOAA-20) | SZA (NOAA-20 ) | Date (AQUA) | Time (AQUA) | Lat,Lon (AQUA) | SZA (AQUA ) | Distance(km) | Time Diff (sec) |
| 1 | 09/20/2020 | 06:46:11 | -76.37, 138.60 | 84.44 | 09/20/2020 | 06:46:22 | -76.36, 138.55 | 84.43 | 1.48 | 11 |
| 2 | 09/20/2020 | 07:36:39 | 77.08, -51.32 | 94.71 | 09/20/2020 | 07:35:32 | 77.08, -51.28 | 94.75 | 1.32 | 67 |
| 3 | 09/22/2020 | 22:12:39 | 75.41, 83.88 | 97.65 | 09/22/2020 | 22:13:42 | 75.42, 83.93 | 97.58 | 1.61 | 63 |
| 4 | 09/22/2020 | 23:02:58 | -76.65,-104.58 | 83.81 | 09/22/2020 | 23:02:45 | -76.64,-104.64 | 83.78 | 1.73 | 13 |
| 5 | 09/25/2020 | 14:29:23 | 75.79,-159.13 | 98.18 | 09/25/2020 | 14:30:02 | 75.80,-159.10 | 98.13 | 1.04 | 39 |
| 6 | 09/25/2020 | 15:19:43 | -76.97, 12.46 | 83.23 | 09/25/2020 | 15:19:06 | -76.96, 12.37 | 83.17 | 2.39 | 37 |
| 7 | 09/28/2020 | 06:46:07 | 76.21, -41.93 | 98.65 | 09/28/2020 | 06:46:22 | 76.22, -41.93 | 98.64 | 0.15 | 15 |
| 8 | 09/28/2020 | 07:36:37 | -76.93, 128.09 | 82.21 | 09/28/2020 | 07:35:35 | -76.94, 128.19 | 82.18 | 2.53 | 62 |
| 9 | 09/30/2020 | 22:12:37 | -75.26, -96.56 | 79.29 | 09/30/2020 | 22:13:45 | -75.27, -96.50 | 79.37 | 1.84 | 68 |
| 10 | 09/30/2020 | 23:02:52 | 76.58, 75.19 | 99.18 | 09/30/2020 | 23:02:43 | 76.58, 75.14 | 99.20 | 1.27 | 9 |

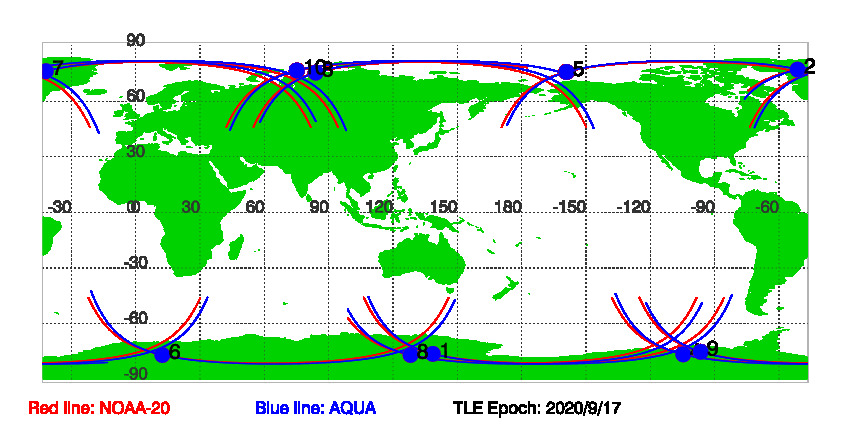

Figure of NOAA-20 and AQUA satellite orbits during SNOs since TLE Epoch: 9/17/2020
Download SNOs between NOAA-20 and AQUA since TLE EPOCH: 09/17/2020 in txt file.
Historical Predications of SNOs between NOAA-20 and AQUA
