Simultaneous Nadir Overpasses (SNOs) Predictions
Prediction of SNOs between NOAA-20 and AQUA Satellite Orbit:
Table of predicted SNOs for the next 14.0 days since TLE Epoch: 8/9/2020
| Index | Date (NOAA-20) | Time (NOAA-20) | Lat,Lon (NOAA-20) | SZA (NOAA-20 ) | Date (AQUA) | Time (AQUA) | Lat,Lon (AQUA) | SZA (AQUA ) | Distance(km) | Time Diff (sec) |
| 1 | 08/11/2020 | 05:56:04 | -75.86, 149.43 | 97.13 | 08/11/2020 | 05:57:05 | -75.85, 149.36 | 97.16 | 2.15 | 61 |
| 2 | 08/11/2020 | 06:46:28 | 76.77, -39.96 | 81.74 | 08/11/2020 | 06:46:12 | 76.77, -40.00 | 81.76 | 1.01 | 16 |
| 3 | 08/13/2020 | 22:12:56 | -75.94, -94.54 | 96.45 | 08/13/2020 | 22:13:33 | -75.94, -94.49 | 96.49 | 1.28 | 37 |
| 4 | 08/13/2020 | 23:03:20 | 76.84, 76.09 | 82.43 | 08/13/2020 | 23:02:40 | 76.85, 76.17 | 82.44 | 2.09 | 40 |
| 5 | 08/16/2020 | 14:29:37 | -76.46, 23.09 | 96.31 | 08/16/2020 | 14:29:51 | -76.46, 23.04 | 96.31 | 1.55 | 14 |
| 6 | 08/16/2020 | 15:20:02 | 77.30,-166.21 | 82.63 | 08/16/2020 | 15:18:59 | 77.30,-166.26 | 82.69 | 1.21 | 63 |
| 7 | 08/19/2020 | 05:56:06 | 75.49, -31.75 | 85.70 | 08/19/2020 | 05:57:13 | 75.49, -31.69 | 85.63 | 1.99 | 67 |
| 8 | 08/19/2020 | 06:46:28 | -76.58, 139.30 | 95.64 | 08/19/2020 | 06:46:18 | -76.58, 139.34 | 95.64 | 1.18 | 10 |
| 9 | 08/21/2020 | 22:12:46 | 76.11, 86.07 | 85.78 | 08/21/2020 | 22:13:30 | 76.11, 86.02 | 85.76 | 1.53 | 44 |

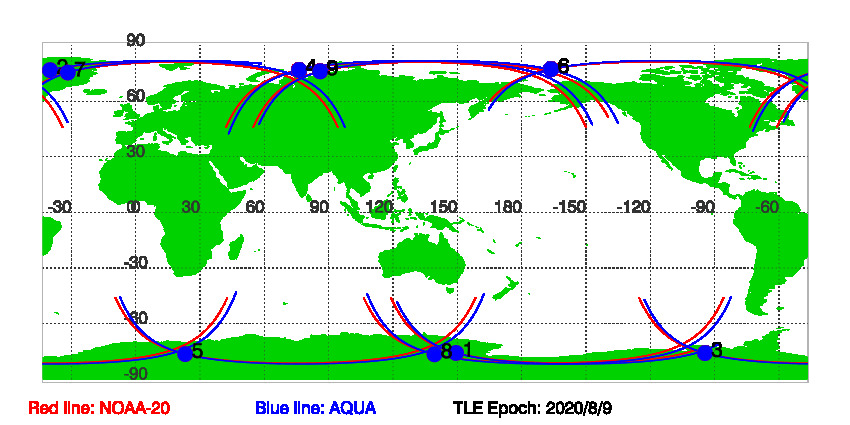

Figure of NOAA-20 and AQUA satellite orbits during SNOs since TLE Epoch: 8/9/2020
Download SNOs between NOAA-20 and AQUA since TLE EPOCH: 08/09/2020 in txt file.
Historical Predications of SNOs between NOAA-20 and AQUA
