Simultaneous Nadir Overpasses (SNOs) Predictions
Prediction of SNOs between NOAA-20 and AQUA Satellite Orbit:
Table of predicted SNOs for the next 14.0 days since TLE Epoch: 8/1/2020
| Index | Date (NOAA-20) | Time (NOAA-20) | Lat,Lon (NOAA-20) | SZA (NOAA-20 ) | Date (AQUA) | Time (AQUA) | Lat,Lon (AQUA) | SZA (AQUA ) | Distance(km) | Time Diff (sec) |
| 1 | 08/03/2020 | 05:56:12 | 75.68, -31.18 | 80.95 | 08/03/2020 | 05:57:07 | 75.68, -31.15 | 80.89 | 0.80 | 55 |
| 2 | 08/03/2020 | 06:46:33 | -76.80, 140.11 | 100.45 | 08/03/2020 | 06:46:11 | -76.79, 140.08 | 100.43 | 0.89 | 22 |
| 3 | 08/05/2020 | 22:12:54 | 76.17, 86.25 | 81.03 | 08/05/2020 | 22:13:25 | 76.17, 86.22 | 81.02 | 1.04 | 31 |
| 4 | 08/05/2020 | 23:03:16 | -77.22,-102.37 | 100.31 | 08/05/2020 | 23:02:30 | -77.21,-102.48 | 100.25 | 2.94 | 46 |
| 5 | 08/08/2020 | 14:29:46 | 76.25,-157.70 | 81.66 | 08/08/2020 | 14:29:52 | 76.26,-157.61 | 81.63 | 2.57 | 6 |
| 6 | 08/08/2020 | 15:20:09 | -77.25, 13.55 | 99.63 | 08/08/2020 | 15:18:58 | -77.26, 13.57 | 99.58 | 0.59 | 71 |
| 7 | 08/11/2020 | 05:56:05 | -75.82, 149.30 | 97.08 | 08/11/2020 | 05:57:04 | -75.82, 149.26 | 97.12 | 1.11 | 59 |
| 8 | 08/11/2020 | 06:46:29 | 76.73, -40.14 | 81.80 | 08/11/2020 | 06:46:11 | 76.73, -40.15 | 81.82 | 0.28 | 18 |
| 9 | 08/13/2020 | 22:12:56 | -75.95, -94.51 | 96.46 | 08/13/2020 | 22:13:30 | -75.95, -94.45 | 96.51 | 1.92 | 34 |

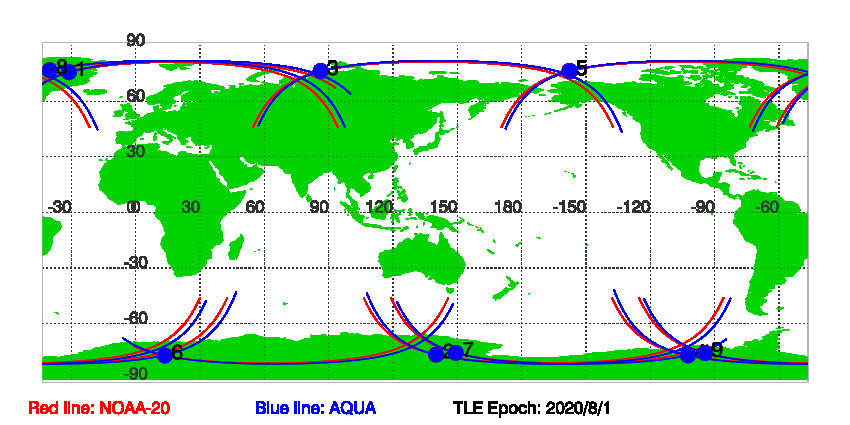

Figure of NOAA-20 and AQUA satellite orbits during SNOs since TLE Epoch: 8/1/2020
Download SNOs between NOAA-20 and AQUA since TLE EPOCH: 08/01/2020 in txt file.
Historical Predications of SNOs between NOAA-20 and AQUA
