Simultaneous Nadir Overpasses (SNOs) Predictions
Prediction of SNOs between NOAA-20 and AQUA Satellite Orbit:
Table of predicted SNOs for the next 14.0 days since TLE Epoch: 7/13/2020
| Index | Date (NOAA-20) | Time (NOAA-20) | Lat,Lon (NOAA-20) | SZA (NOAA-20 ) | Date (AQUA) | Time (AQUA) | Lat,Lon (AQUA) | SZA (AQUA ) | Distance(km) | Time Diff (sec) |
| 1 | 07/15/2020 | 13:39:29 | 75.59,-147.26 | 77.11 | 07/15/2020 | 13:40:39 | 75.58,-147.32 | 77.07 | 1.90 | 70 |
| 2 | 07/15/2020 | 14:29:51 | -76.67, 23.84 | 104.24 | 07/15/2020 | 14:29:44 | -76.67, 23.76 | 104.22 | 2.19 | 7 |
| 3 | 07/18/2020 | 05:56:15 | 75.91, -30.45 | 77.18 | 07/18/2020 | 05:57:01 | 75.90, -30.49 | 77.16 | 1.36 | 46 |
| 4 | 07/18/2020 | 06:46:38 | -76.93, 140.63 | 104.12 | 07/18/2020 | 06:46:07 | -76.93, 140.56 | 104.08 | 2.07 | 31 |
| 5 | 07/20/2020 | 22:13:01 | 76.26, 86.56 | 77.23 | 07/20/2020 | 22:13:23 | 76.26, 86.52 | 77.22 | 1.13 | 22 |
| 6 | 07/20/2020 | 23:03:26 | -77.19,-102.53 | 103.95 | 07/20/2020 | 23:02:31 | -77.18,-102.62 | 103.89 | 2.26 | 55 |
| 7 | 07/23/2020 | 13:40:00 | -73.93, 28.18 | 99.45 | 07/23/2020 | 13:41:14 | -73.89, 28.40 | 99.53 | 8.55 | 74 |
| 8 | 07/23/2020 | 14:29:48 | 76.57,-156.54 | 77.38 | 07/23/2020 | 14:29:46 | 76.57,-156.59 | 77.39 | 1.21 | 2 |
| 9 | 07/23/2020 | 15:16:12 | -79.97, 92.59 | 117.46 | 07/23/2020 | 15:14:59 | -80.63, 94.75 | 117.17 | 84.24 | 73 |
| 10 | 07/26/2020 | 05:56:11 | -75.97, 149.79 | 101.32 | 07/26/2020 | 05:57:02 | -75.97, 149.71 | 101.34 | 2.26 | 51 |

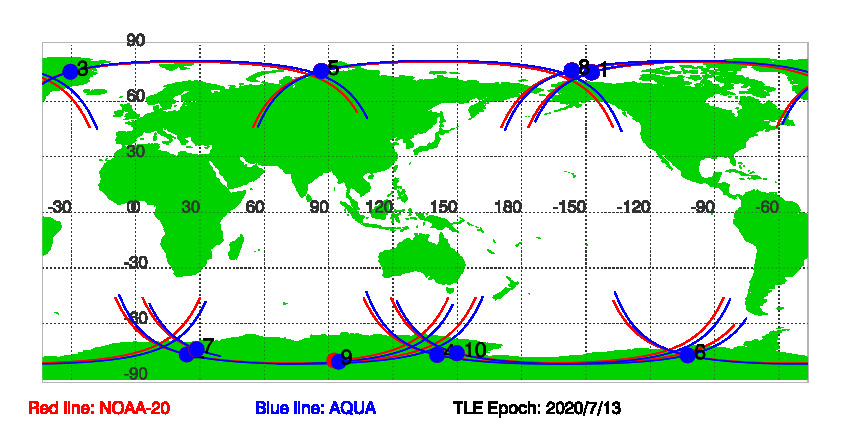

Figure of NOAA-20 and AQUA satellite orbits during SNOs since TLE Epoch: 7/13/2020
Download SNOs between NOAA-20 and AQUA since TLE EPOCH: 07/13/2020 in txt file.
Historical Predications of SNOs between NOAA-20 and AQUA
