Simultaneous Nadir Overpasses (SNOs) Predictions
Prediction of SNOs between NOAA-19 and TERRA Satellite Orbit:
Table of predicted SNOs for the next 14.0 days since TLE Epoch: 7/24/2025
| Index | Date (NOAA-19) | Time (NOAA-19) | Lat,Lon (NOAA-19) | SZA (NOAA-19 ) | Date (TERRA) | Time (TERRA) | Lat,Lon (TERRA) | SZA (TERRA ) | Distance(km) | Time Diff (sec) |
| 1 | 07/25/2025 | 20:55:25 | 79.03, -40.19 | 71.31 | 07/25/2025 | 20:55:04 | 79.03, -40.17 | 71.30 | 0.80 | 21 |
| 2 | 07/27/2025 | 23:02:40 | -79.24, 106.40 | 108.55 | 07/27/2025 | 23:03:37 | -79.24, 106.40 | 108.50 | 0.11 | 57 |
| 3 | 07/27/2025 | 23:53:35 | 79.02, -84.59 | 71.81 | 07/27/2025 | 23:52:52 | 79.02, -84.61 | 71.77 | 0.52 | 43 |
| 4 | 07/30/2025 | 02:00:50 | -79.25, 61.86 | 108.05 | 07/30/2025 | 02:01:25 | -79.24, 61.92 | 108.01 | 1.24 | 35 |
| 5 | 07/30/2025 | 02:51:45 | 79.01,-129.02 | 72.33 | 07/30/2025 | 02:50:40 | 79.02,-129.11 | 72.26 | 2.14 | 65 |
| 6 | 08/01/2025 | 04:59:00 | -79.26, 17.31 | 107.54 | 08/01/2025 | 04:59:13 | -79.25, 17.37 | 107.51 | 1.45 | 13 |
| 7 | 08/03/2025 | 07:57:09 | -79.23, -27.01 | 106.95 | 08/03/2025 | 07:57:00 | -79.23, -26.99 | 106.95 | 0.67 | 9 |
| 8 | 08/05/2025 | 10:04:30 | 79.38, 119.95 | 73.38 | 08/05/2025 | 10:05:33 | 79.39, 119.90 | 73.42 | 1.27 | 63 |

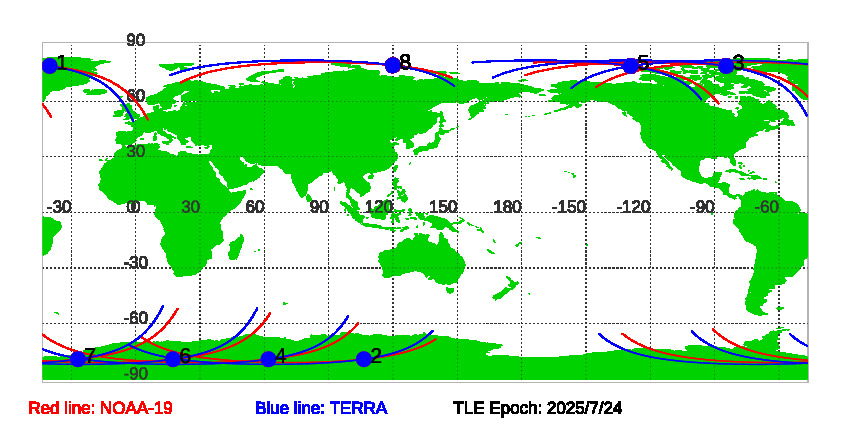

Figure of NOAA-19 and TERRA satellite orbits during SNOs since TLE Epoch: 7/24/2025
Download SNOs between NOAA-19 and TERRA since TLE EPOCH: 07/24/2025 in txt file.
Historial Predications of SNOs between NOAA-19 and TERRA
