Simultaneous Nadir Overpasses (SNOs) Predictions
Prediction of SNOs between NOAA-19 and TERRA Satellite Orbit:
Table of predicted SNOs for the next 14.0 days since TLE Epoch: 6/30/2025
Index | Date (NOAA-19) | Time (NOAA-19) | Lat,Lon (NOAA-19) | SZA (NOAA-19 ) | Date (TERRA) | Time (TERRA) | Lat,Lon (TERRA) | SZA (TERRA ) | Distance(km) | Time Diff (sec) |
1 | 06/30/2025 | 10:58:54 | 78.58, 111.58 | 68.41 | 06/30/2025 | 10:59:35 | 78.58, 111.54 | 68.44 | 0.96 | 41 |
2 | 06/30/2025 | 11:49:49 | -78.35, -79.73 | 111.27 | 06/30/2025 | 11:48:48 | -78.34, -79.61 | 111.29 | 2.94 | 61 |
3 | 07/02/2025 | 13:57:06 | 78.58, 67.02 | 68.54 | 07/02/2025 | 13:57:26 | 78.58, 67.01 | 68.55 | 0.25 | 20 |
4 | 07/04/2025 | 16:55:18 | 78.59, 22.45 | 68.69 | 07/04/2025 | 16:55:17 | 78.60, 22.45 | 68.69 | 0.14 | 1 |
5 | 07/06/2025 | 19:02:40 | -78.84, 169.03 | 111.47 | 07/06/2025 | 19:03:53 | -78.83, 169.07 | 111.41 | 1.20 | 73 |
6 | 07/06/2025 | 19:53:29 | 78.57, -21.90 | 68.92 | 07/06/2025 | 19:53:07 | 78.57, -21.93 | 68.90 | 0.65 | 22 |
7 | 07/08/2025 | 22:00:52 | -78.87, 124.30 | 111.29 | 07/08/2025 | 22:01:44 | -78.86, 124.42 | 111.23 | 2.89 | 52 |
8 | 07/08/2025 | 22:51:40 | 78.55, -66.27 | 69.18 | 07/08/2025 | 22:50:57 | 78.55, -66.35 | 69.13 | 1.78 | 43 |
9 | 07/11/2025 | 00:59:01 | -78.80, 80.29 | 110.93 | 07/11/2025 | 00:59:33 | -78.81, 80.19 | 110.93 | 2.37 | 32 |
10 | 07/11/2025 | 01:49:53 | 78.60,-111.14 | 69.36 | 07/11/2025 | 01:48:48 | 78.59,-111.03 | 69.33 | 2.98 | 65 |

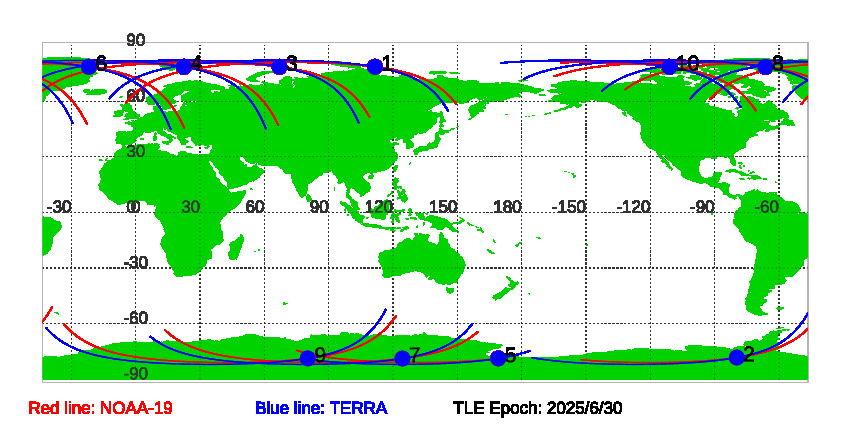

Figure of NOAA-19 and TERRA satellite orbits during SNOs since TLE Epoch: 6/30/2025
Download SNOs between NOAA-19 and TERRA since TLE EPOCH: 06/30/2025 in txt file.
Historial Predications of SNOs between NOAA-19 and TERRA
