Simultaneous Nadir Overpasses (SNOs) Predictions
Prediction of SNOs between NOAA-19 and TERRA Satellite Orbit:
Table of predicted SNOs for the next 14.0 days since TLE Epoch: 6/28/2025
Index | Date (NOAA-19) | Time (NOAA-19) | Lat,Lon (NOAA-19) | SZA (NOAA-19 ) | Date (TERRA) | Time (TERRA) | Lat,Lon (TERRA) | SZA (TERRA ) | Distance(km) | Time Diff (sec) |
1 | 06/28/2025 | 08:00:42 | 78.57, 156.13 | 68.32 | 06/28/2025 | 08:01:44 | 78.58, 156.03 | 68.35 | 2.43 | 62 |
2 | 06/28/2025 | 08:51:36 | -78.29, -34.88 | 111.29 | 06/28/2025 | 08:50:56 | -78.29, -34.89 | 111.33 | 0.44 | 40 |
3 | 06/30/2025 | 10:58:54 | 78.58, 111.58 | 68.41 | 06/30/2025 | 10:59:35 | 78.58, 111.55 | 68.44 | 0.84 | 41 |
4 | 06/30/2025 | 11:49:49 | -78.35, -79.72 | 111.26 | 06/30/2025 | 11:48:48 | -78.33, -79.59 | 111.29 | 3.18 | 61 |
5 | 07/02/2025 | 13:57:06 | 78.58, 67.02 | 68.54 | 07/02/2025 | 13:57:26 | 78.58, 67.02 | 68.56 | 0.42 | 20 |
6 | 07/04/2025 | 16:55:18 | 78.60, 22.43 | 68.69 | 07/04/2025 | 16:55:17 | 78.59, 22.47 | 68.69 | 0.87 | 1 |
7 | 07/06/2025 | 19:02:41 | -78.87, 168.76 | 111.53 | 07/06/2025 | 19:03:54 | -78.86, 168.87 | 111.45 | 2.76 | 73 |
8 | 07/06/2025 | 19:53:30 | 78.61, -22.17 | 68.86 | 07/06/2025 | 19:53:08 | 78.61, -22.13 | 68.85 | 0.96 | 22 |
9 | 07/08/2025 | 22:00:51 | -78.84, 124.50 | 111.25 | 07/08/2025 | 22:01:44 | -78.85, 124.45 | 111.22 | 1.36 | 53 |
10 | 07/08/2025 | 22:51:41 | 78.59, -66.57 | 69.11 | 07/08/2025 | 22:50:58 | 78.59, -66.55 | 69.08 | 0.51 | 43 |
11 | 07/11/2025 | 00:59:02 | -78.84, 79.96 | 111.00 | 07/11/2025 | 00:59:34 | -78.84, 80.00 | 110.97 | 0.84 | 32 |

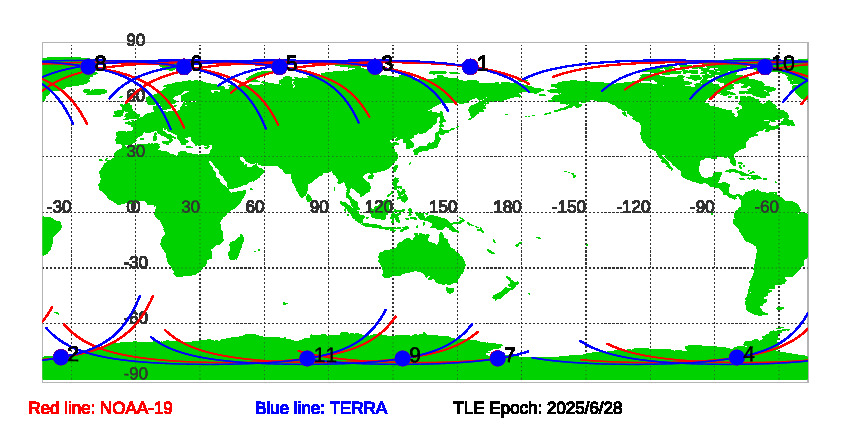

Figure of NOAA-19 and TERRA satellite orbits during SNOs since TLE Epoch: 6/28/2025
Download SNOs between NOAA-19 and TERRA since TLE EPOCH: 06/28/2025 in txt file.
Historial Predications of SNOs between NOAA-19 and TERRA
