Simultaneous Nadir Overpasses (SNOs) Predictions
Prediction of SNOs between NOAA-19 and TERRA Satellite Orbit:
Table of predicted SNOs for the next 14.0 days since TLE Epoch: 6/15/2025
| Index | Date (NOAA-19) | Time (NOAA-19) | Lat,Lon (NOAA-19) | SZA (NOAA-19 ) | Date (TERRA) | Time (TERRA) | Lat,Lon (TERRA) | SZA (TERRA ) | Distance(km) | Time Diff (sec) |
| 1 | 06/15/2025 | 15:53:08 | 77.92, 41.53 | 69.22 | 06/15/2025 | 15:52:57 | 77.93, 41.44 | 69.19 | 2.26 | 11 |
| 2 | 06/17/2025 | 18:00:38 | -78.35,-172.72 | 111.45 | 06/17/2025 | 18:01:39 | -78.34,-172.59 | 111.37 | 3.21 | 61 |
| 3 | 06/17/2025 | 18:51:23 | 78.03, -3.55 | 69.00 | 06/17/2025 | 18:50:51 | 78.01, -3.42 | 69.01 | 3.23 | 32 |
| 4 | 06/19/2025 | 20:58:49 | -78.31, 143.04 | 111.43 | 06/19/2025 | 20:59:30 | -78.30, 143.10 | 111.38 | 1.72 | 41 |
| 5 | 06/19/2025 | 21:49:34 | 77.98, -47.78 | 69.02 | 06/19/2025 | 21:48:42 | 77.97, -47.74 | 68.99 | 1.28 | 52 |
| 6 | 06/21/2025 | 23:57:01 | -78.30, 98.55 | 111.45 | 06/21/2025 | 23:57:22 | -78.31, 98.54 | 111.43 | 0.65 | 21 |
| 7 | 06/22/2025 | 00:47:45 | 77.93, -92.03 | 69.07 | 06/22/2025 | 00:46:33 | 77.93, -92.10 | 68.99 | 1.80 | 72 |
| 8 | 06/24/2025 | 02:55:14 | -78.34, 53.79 | 111.49 | 06/24/2025 | 02:55:14 | -78.33, 53.92 | 111.46 | 3.06 | 0 |
| 9 | 06/26/2025 | 05:53:24 | -78.28, 9.69 | 111.35 | 06/26/2025 | 05:53:04 | -78.28, 9.66 | 111.37 | 0.59 | 20 |
| 10 | 06/28/2025 | 08:00:42 | 78.58, 156.04 | 68.30 | 06/28/2025 | 08:01:43 | 78.59, 156.00 | 68.34 | 1.12 | 61 |

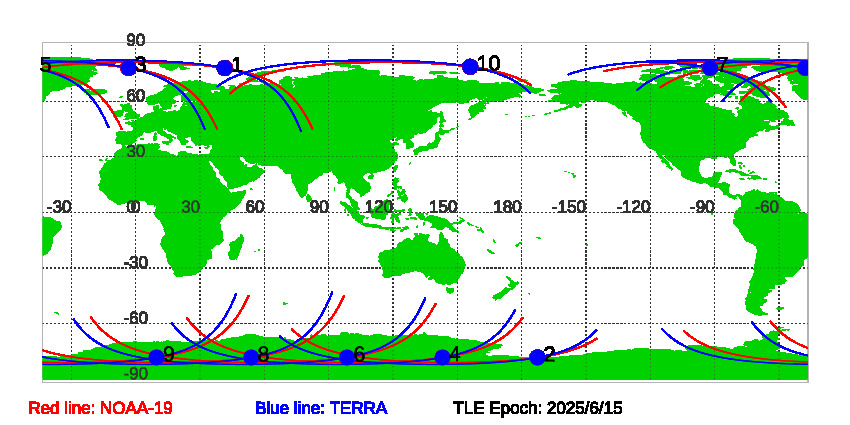

Figure of NOAA-19 and TERRA satellite orbits during SNOs since TLE Epoch: 6/15/2025
Download SNOs between NOAA-19 and TERRA since TLE EPOCH: 06/15/2025 in txt file.
Historial Predications of SNOs between NOAA-19 and TERRA
