Simultaneous Nadir Overpasses (SNOs) Predictions

Prediction of SNOs between NOAA-19 and TERRA Satellite Orbit:

Table of predicted SNOs for the next 14.0 days since TLE Epoch: 6/5/2025
Index Date (NOAA-19) Time (NOAA-19) Lat,Lon (NOAA-19) SZA (NOAA-19 ) Date (TERRA) Time (TERRA) Lat,Lon (TERRA) SZA (TERRA ) Distance(km) Time Diff (sec)
1 06/07/2025 04:00:18 77.92,-140.44 69.82 06/07/2025 04:01:26 77.93,-140.52 69.86 2.11 68
2 06/07/2025 04:51:11 -77.54, 28.78 109.68 06/07/2025 04:50:37 -77.55, 28.73 109.73 1.45 34
3 06/09/2025 06:58:32 77.97, 174.78 69.56 06/09/2025 06:59:20 77.97, 174.80 69.61 0.57 48
4 06/09/2025 07:49:24 -77.54, -15.74 109.88 06/09/2025 07:48:30 -77.54, -15.74 109.93 0.35 54
5 06/11/2025 09:56:45 77.99, 130.19 69.38 06/11/2025 09:57:13 77.98, 130.26 69.42 2.06 28
6 06/11/2025 10:47:34 -77.43, -59.70 109.90 06/11/2025 10:46:20 -77.41, -59.73 109.96 2.78 74
7 06/13/2025 12:54:58 78.01, 85.58 69.21 06/13/2025 12:55:06 78.00, 85.67 69.24 2.34 8
8 06/15/2025 15:53:10 77.99, 41.16 69.13 06/15/2025 15:52:58 77.98, 41.21 69.13 1.46 12
9 06/17/2025 18:00:37 -78.30,-172.40 111.37 06/17/2025 18:01:38 -78.30,-172.40 111.32 0.19 61

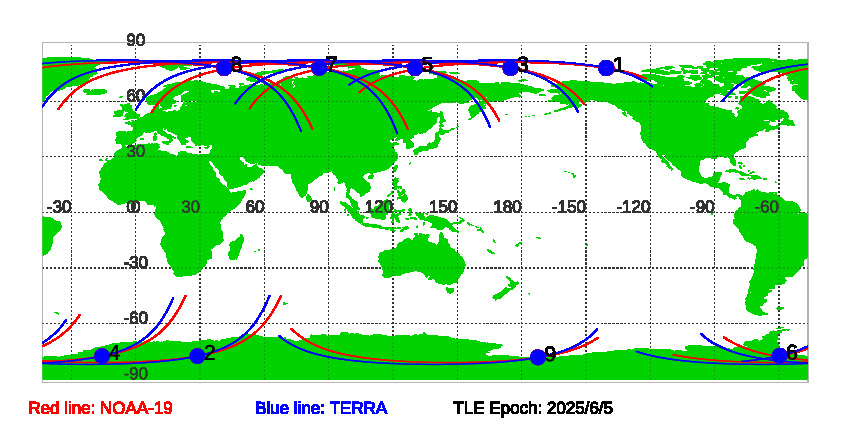

Figure of NOAA-19 and TERRA satellite orbits during SNOs since TLE Epoch: 6/5/2025

Download SNOs between NOAA-19 and TERRA since TLE EPOCH: 06/05/2025 in txt file.

Historial Predications of SNOs between NOAA-19 and TERRA
