Simultaneous Nadir Overpasses (SNOs) Predictions
Prediction of SNOs between NOAA-19 and TERRA Satellite Orbit:
Table of predicted SNOs for the next 14.0 days since TLE Epoch: 5/29/2025
| Index | Date (NOAA-19) | Time (NOAA-19) | Lat,Lon (NOAA-19) | SZA (NOAA-19 ) | Date (TERRA) | Time (TERRA) | Lat,Lon (TERRA) | SZA (TERRA ) | Distance(km) | Time Diff (sec) |
| 1 | 05/29/2025 | 16:58:19 | -77.60,-153.45 | 108.70 | 05/29/2025 | 16:59:02 | -77.59,-153.35 | 108.64 | 2.61 | 43 |
| 2 | 05/29/2025 | 17:49:02 | 77.10, 16.17 | 71.93 | 05/29/2025 | 17:48:11 | 77.11, 16.15 | 71.88 | 1.03 | 51 |
| 3 | 05/31/2025 | 19:56:33 | -77.61, 161.97 | 109.03 | 05/31/2025 | 19:56:57 | -77.60, 162.05 | 108.99 | 2.18 | 24 |
| 4 | 05/31/2025 | 20:47:16 | 77.13, -28.48 | 71.59 | 05/31/2025 | 20:46:06 | 77.13, -28.46 | 71.53 | 0.70 | 70 |
| 5 | 06/02/2025 | 22:54:46 | -77.59, 117.55 | 109.28 | 06/02/2025 | 22:54:51 | -77.59, 117.59 | 109.26 | 1.11 | 5 |
| 6 | 06/05/2025 | 01:52:58 | -77.54, 73.30 | 109.46 | 06/05/2025 | 01:52:44 | -77.54, 73.27 | 109.48 | 0.67 | 14 |
| 7 | 06/07/2025 | 04:00:20 | 78.00,-140.86 | 69.72 | 06/07/2025 | 04:01:28 | 77.99,-140.78 | 69.80 | 2.37 | 68 |
| 8 | 06/07/2025 | 04:51:10 | -77.49, 29.01 | 109.62 | 06/07/2025 | 04:50:37 | -77.50, 28.90 | 109.68 | 3.01 | 33 |
| 9 | 06/09/2025 | 06:58:32 | 77.97, 174.79 | 69.56 | 06/09/2025 | 06:59:21 | 77.97, 174.81 | 69.61 | 0.56 | 49 |
| 10 | 06/09/2025 | 07:49:25 | -77.57, -15.90 | 109.92 | 06/09/2025 | 07:48:32 | -77.57, -15.89 | 109.96 | 0.43 | 53 |
| 11 | 06/11/2025 | 09:56:44 | 77.95, 130.42 | 69.43 | 06/11/2025 | 09:57:14 | 77.96, 130.34 | 69.44 | 2.26 | 30 |

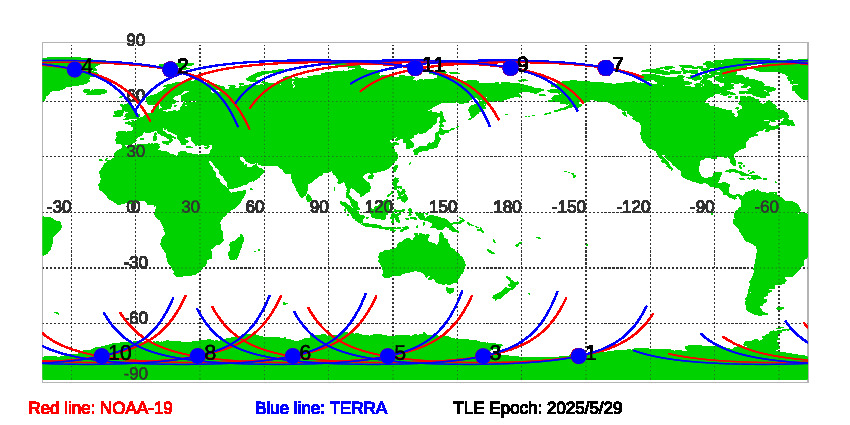

Figure of NOAA-19 and TERRA satellite orbits during SNOs since TLE Epoch: 5/29/2025
Download SNOs between NOAA-19 and TERRA since TLE EPOCH: 05/29/2025 in txt file.
Historial Predications of SNOs between NOAA-19 and TERRA
