Simultaneous Nadir Overpasses (SNOs) Predictions
Prediction of SNOs between NOAA-19 and TERRA Satellite Orbit:
Table of predicted SNOs for the next 14.0 days since TLE Epoch: 5/23/2025
| Index | Date (NOAA-19) | Time (NOAA-19) | Lat,Lon (NOAA-19) | SZA (NOAA-19 ) | Date (TERRA) | Time (TERRA) | Lat,Lon (TERRA) | SZA (TERRA ) | Distance(km) | Time Diff (sec) |
| 1 | 05/23/2025 | 08:54:22 | 77.11, 149.66 | 72.98 | 05/23/2025 | 08:54:26 | 77.11, 149.71 | 72.99 | 1.42 | 4 |
| 2 | 05/25/2025 | 11:52:35 | 77.09, 105.26 | 72.63 | 05/25/2025 | 11:52:21 | 77.09, 105.24 | 72.61 | 0.73 | 14 |
| 3 | 05/27/2025 | 14:00:05 | -77.58,-108.83 | 108.35 | 05/27/2025 | 14:01:07 | -77.56,-108.74 | 108.27 | 2.66 | 62 |
| 4 | 05/27/2025 | 14:50:50 | 77.15, 60.47 | 72.20 | 05/27/2025 | 14:50:17 | 77.13, 60.56 | 72.19 | 2.83 | 33 |
| 5 | 05/29/2025 | 16:58:20 | -77.62,-153.58 | 108.74 | 05/29/2025 | 16:59:03 | -77.61,-153.46 | 108.67 | 3.02 | 43 |
| 6 | 05/29/2025 | 17:49:02 | 77.09, 16.22 | 71.94 | 05/29/2025 | 17:48:11 | 77.09, 16.19 | 71.89 | 0.93 | 51 |
| 7 | 05/31/2025 | 19:56:33 | -77.59, 162.06 | 109.00 | 05/31/2025 | 19:56:57 | -77.58, 162.15 | 108.96 | 2.72 | 24 |
| 8 | 05/31/2025 | 20:47:16 | 77.12, -28.42 | 71.60 | 05/31/2025 | 20:46:06 | 77.11, -28.39 | 71.55 | 0.93 | 70 |
| 9 | 06/02/2025 | 22:54:47 | -77.61, 117.46 | 109.30 | 06/02/2025 | 22:54:52 | -77.60, 117.53 | 109.28 | 1.83 | 5 |

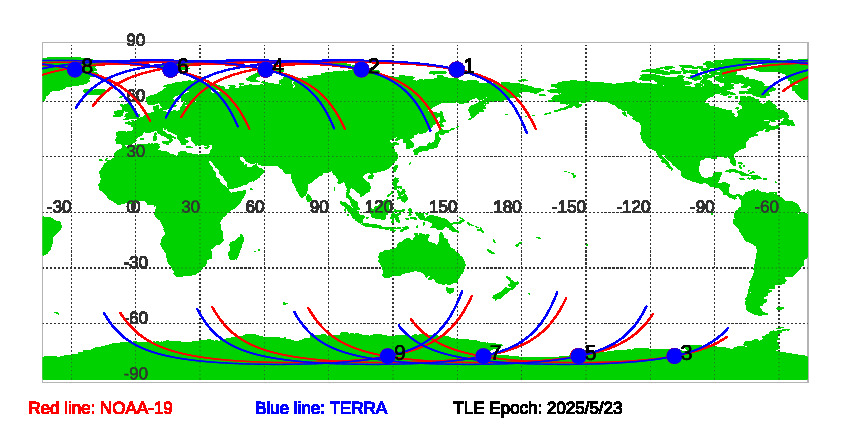

Figure of NOAA-19 and TERRA satellite orbits during SNOs since TLE Epoch: 5/23/2025
Download SNOs between NOAA-19 and TERRA since TLE EPOCH: 05/23/2025 in txt file.
Historial Predications of SNOs between NOAA-19 and TERRA
