Simultaneous Nadir Overpasses (SNOs) Predictions
Prediction of SNOs between NOAA-19 and TERRA Satellite Orbit:
Table of predicted SNOs for the next 14.0 days since TLE Epoch: 5/22/2025
| Index | Date (NOAA-19) | Time (NOAA-19) | Lat,Lon (NOAA-19) | SZA (NOAA-19 ) | Date (TERRA) | Time (TERRA) | Lat,Lon (TERRA) | SZA (TERRA ) | Distance(km) | Time Diff (sec) |
| 1 | 05/23/2025 | 08:54:22 | 77.11, 149.66 | 72.98 | 05/23/2025 | 08:54:26 | 77.11, 149.71 | 72.99 | 1.36 | 4 |
| 2 | 05/25/2025 | 11:52:34 | 77.04, 105.44 | 72.68 | 05/25/2025 | 11:52:20 | 77.05, 105.40 | 72.66 | 1.12 | 14 |
| 3 | 05/27/2025 | 14:00:05 | -77.58,-108.84 | 108.35 | 05/27/2025 | 14:01:07 | -77.57,-108.77 | 108.28 | 1.83 | 62 |
| 4 | 05/27/2025 | 14:50:50 | 77.15, 60.46 | 72.19 | 05/27/2025 | 14:50:17 | 77.14, 60.53 | 72.18 | 1.98 | 33 |
| 5 | 05/29/2025 | 16:58:19 | -77.59,-153.39 | 108.69 | 05/29/2025 | 16:59:02 | -77.58,-153.33 | 108.64 | 1.57 | 43 |
| 6 | 05/29/2025 | 17:49:01 | 77.05, 16.39 | 71.99 | 05/29/2025 | 17:48:10 | 77.06, 16.30 | 71.92 | 2.43 | 51 |
| 7 | 05/31/2025 | 19:56:32 | -77.56, 162.23 | 108.96 | 05/31/2025 | 19:56:56 | -77.56, 162.25 | 108.93 | 0.49 | 24 |
| 8 | 05/31/2025 | 20:47:15 | 77.08, -28.26 | 71.65 | 05/31/2025 | 20:46:05 | 77.09, -28.31 | 71.57 | 1.39 | 70 |
| 9 | 06/02/2025 | 22:54:45 | -77.54, 117.82 | 109.21 | 06/02/2025 | 22:54:50 | -77.54, 117.77 | 109.22 | 1.39 | 5 |

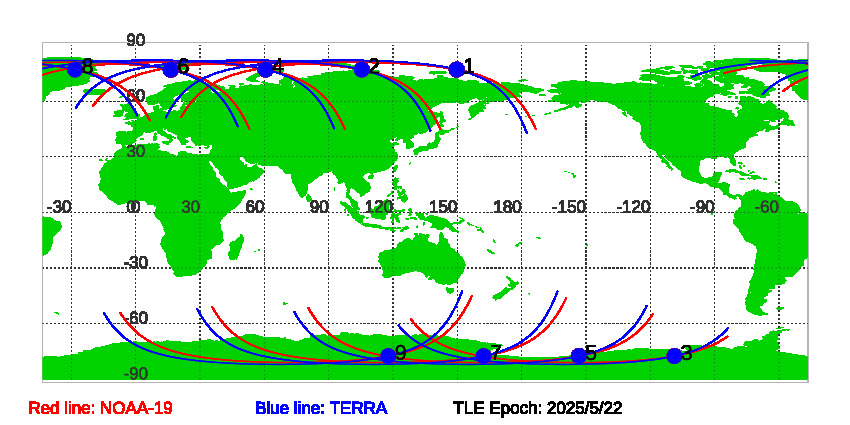

Figure of NOAA-19 and TERRA satellite orbits during SNOs since TLE Epoch: 5/22/2025
Download SNOs between NOAA-19 and TERRA since TLE EPOCH: 05/22/2025 in txt file.
Historial Predications of SNOs between NOAA-19 and TERRA
