Simultaneous Nadir Overpasses (SNOs) Predictions
Prediction of SNOs between NOAA-19 and TERRA Satellite Orbit:
Table of predicted SNOs for the next 14.0 days since TLE Epoch: 5/7/2025
| Index | Date (NOAA-19) | Time (NOAA-19) | Lat,Lon (NOAA-19) | SZA (NOAA-19 ) | Date (TERRA) | Time (TERRA) | Lat,Lon (TERRA) | SZA (TERRA ) | Distance(km) | Time Diff (sec) |
| 1 | 05/08/2025 | 12:57:21 | -76.36, -88.35 | 102.85 | 05/08/2025 | 12:57:54 | -76.37, -88.45 | 102.84 | 2.92 | 33 |
| 2 | 05/08/2025 | 13:48:06 | 75.66, 81.39 | 77.96 | 05/08/2025 | 13:47:00 | 75.67, 81.30 | 77.87 | 2.89 | 66 |
| 3 | 05/10/2025 | 15:55:37 | -76.39,-133.02 | 103.42 | 05/10/2025 | 15:55:52 | -76.40,-133.07 | 103.42 | 1.66 | 15 |
| 4 | 05/12/2025 | 18:53:52 | -76.39,-177.54 | 103.93 | 05/12/2025 | 18:53:49 | -76.40,-177.60 | 103.95 | 1.81 | 3 |
| 5 | 05/14/2025 | 21:02:52 | 80.11, -53.72 | 70.22 | 05/14/2025 | 21:04:05 | 80.56, -52.14 | 70.56 | 58.50 | 73 |
| 6 | 05/14/2025 | 21:52:10 | -76.53, 137.40 | 104.59 | 05/14/2025 | 21:51:48 | -76.52, 137.49 | 104.58 | 2.98 | 22 |
| 7 | 05/16/2025 | 23:59:38 | 77.04, -76.49 | 74.34 | 05/17/2025 | 00:00:36 | 77.05, -76.52 | 74.38 | 0.90 | 58 |
| 8 | 05/17/2025 | 00:50:24 | -76.50, 93.00 | 105.02 | 05/17/2025 | 00:49:44 | -76.51, 93.00 | 105.06 | 0.28 | 40 |
| 9 | 05/19/2025 | 02:57:51 | 77.00,-120.84 | 73.94 | 05/19/2025 | 02:58:31 | 77.01,-120.92 | 73.95 | 2.27 | 40 |

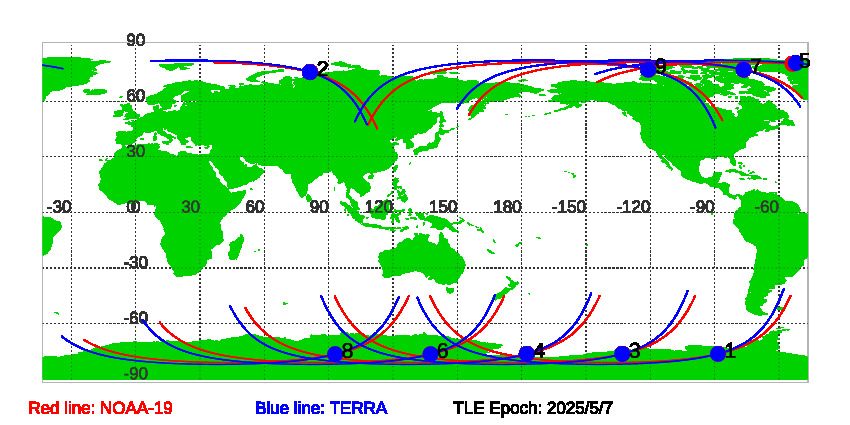

Figure of NOAA-19 and TERRA satellite orbits during SNOs since TLE Epoch: 5/7/2025
Download SNOs between NOAA-19 and TERRA since TLE EPOCH: 05/07/2025 in txt file.
Historial Predications of SNOs between NOAA-19 and TERRA
