Simultaneous Nadir Overpasses (SNOs) Predictions

Prediction of SNOs between NOAA-19 and TERRA Satellite Orbit:

Table of predicted SNOs for the next 14.0 days since TLE Epoch: 8/20/2023
Index Date (NOAA-19) Time (NOAA-19) Lat,Lon (NOAA-19) SZA (NOAA-19 ) Date (TERRA) Time (TERRA) Lat,Lon (TERRA) SZA (TERRA ) Distance(km) Time Diff (sec)
1 08/20/2023 21:28:16 -80.85, 70.25 110.10 08/20/2023 21:27:57 -80.86, 70.19 110.11 1.29 19
2 08/23/2023 00:27:45 -80.83, 24.46 109.48 08/23/2023 00:28:50 -80.82, 24.54 109.45 1.55 65
3 08/23/2023 01:18:39 80.85,-167.49 70.62 08/23/2023 01:18:11 80.86,-167.35 70.64 3.05 28
4 08/25/2023 04:18:06 80.83, 147.21 71.31 08/25/2023 04:19:03 80.85, 147.22 71.34 1.21 57
5 08/25/2023 05:09:08 -80.85, -45.10 108.64 08/25/2023 05:08:25 -80.84, -45.14 108.66 0.80 43
6 08/27/2023 08:08:36 -80.83, -90.65 107.96 08/27/2023 08:09:17 -80.82, -90.68 107.96 1.21 41
7 08/27/2023 08:59:29 80.85, 77.43 72.14 08/27/2023 08:58:38 80.85, 77.41 72.12 0.90 51
8 08/29/2023 11:58:57 80.82, 31.66 72.80 08/29/2023 11:59:30 80.82, 31.73 72.81 1.38 33
9 08/29/2023 12:49:59 -80.84,-160.34 107.11 08/29/2023 12:48:51 -80.85,-160.28 107.13 1.14 68
10 08/31/2023 15:49:26 -80.83, 154.34 106.39 08/31/2023 15:49:42 -80.83, 154.27 106.39 1.22 16

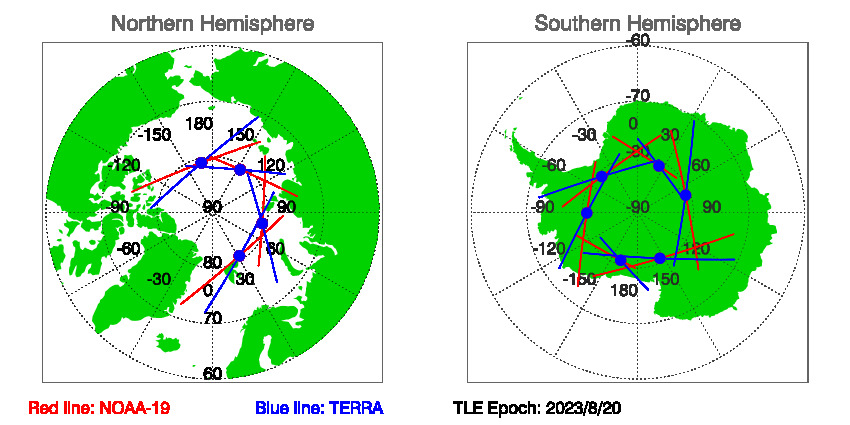

Figure of NOAA-19 and TERRA satellite orbits during SNOs since TLE Epoch: 8/20/2023

Download SNOs between NOAA-19 and TERRA since TLE EPOCH: 08/20/2023 in txt file.

Historial Predications of SNOs between NOAA-19 and TERRA
