Simultaneous Nadir Overpasses (SNOs) Predictions
Prediction of SNOs between METOP-C and LANDSAT-8 Satellite Orbit:
Table of predicted SNOs for the next 14.0 days since TLE Epoch: 9/12/2025
| Index | Date (METOP-C) | Time (METOP-C) | Lat,Lon (METOP-C) | SZA (METOP-C ) | Date (LANDSAT-8) | Time (LANDSAT-8) | Lat,Lon (LANDSAT-8) | SZA (LANDSAT-8 ) | Distance(km) | Time Diff (sec) |
| 1 | 09/15/2025 | 11:12:55 | -81.06,-129.77 | 99.72 | 09/15/2025 | 11:14:09 | -81.04,-129.74 | 99.71 | 2.37 | 74 |
| 2 | 09/15/2025 | 12:03:32 | 81.12, 39.00 | 80.48 | 09/15/2025 | 12:03:32 | 81.12, 39.07 | 80.49 | 1.32 | 0 |
| 3 | 09/15/2025 | 12:54:11 | -81.14,-153.02 | 99.43 | 09/15/2025 | 12:52:58 | -81.14,-152.97 | 99.45 | 0.91 | 73 |
| 4 | 09/18/2025 | 06:47:14 | -81.10, -62.43 | 98.50 | 09/18/2025 | 06:48:23 | -81.10, -62.46 | 98.47 | 0.54 | 69 |
| 5 | 09/18/2025 | 07:37:53 | 81.12, 105.59 | 81.61 | 09/18/2025 | 07:37:48 | 81.13, 105.61 | 81.61 | 0.59 | 5 |
| 6 | 09/21/2025 | 02:21:36 | -81.10, 4.13 | 97.37 | 09/21/2025 | 02:22:40 | -81.10, 4.05 | 97.35 | 1.31 | 64 |
| 7 | 09/21/2025 | 03:12:15 | 81.13, 172.14 | 82.74 | 09/21/2025 | 03:12:05 | 81.13, 172.10 | 82.73 | 0.88 | 10 |
| 8 | 09/23/2025 | 21:55:58 | -81.11, 70.65 | 96.24 | 09/23/2025 | 21:56:57 | -81.11, 70.51 | 96.23 | 2.29 | 59 |
| 9 | 09/23/2025 | 22:46:37 | 81.13,-121.34 | 83.87 | 09/23/2025 | 22:46:22 | 81.13,-121.46 | 83.85 | 2.05 | 15 |
| 10 | 09/26/2025 | 17:30:20 | -81.10, 136.75 | 95.16 | 09/26/2025 | 17:31:13 | -81.10, 136.92 | 95.11 | 3.09 | 53 |

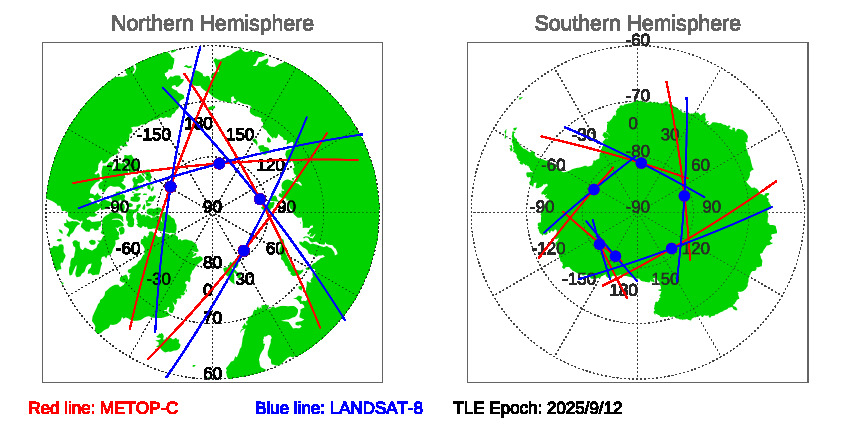

Figure of METOP-C and LANDSAT-8 satellite orbits during SNOs since TLE Epoch: 9/12/2025
Download SNOs between METOP-C and LANDSAT-8 since TLE EPOCH: 09/12/2025 in txt file.
Historial Predications of SNOs between METOP-C and LANDSAT-8
