Simultaneous Nadir Overpasses (SNOs) Predictions

Prediction of SNOs between METOP-B and TERRA Satellite Orbit:

Table of predicted SNOs for the next 14.0 days since TLE Epoch: 7/8/2025
Index Date (METOP-B) Time (METOP-B) Lat,Lon (METOP-B) SZA (METOP-B ) Date (TERRA) Time (TERRA) Lat,Lon (TERRA) SZA (TERRA ) Distance(km) Time Diff (sec)
1 07/10/2025 14:22:41 77.83, -35.41 55.62 07/10/2025 14:23:06 77.84, -35.35 55.62 1.49 25
2 07/10/2025 15:13:10 -78.34, 134.51 123.87 07/10/2025 15:12:14 -78.35, 134.59 123.87 1.71 56
3 07/13/2025 03:11:48 77.58, 131.11 55.72 07/13/2025 03:12:52 77.58, 131.11 55.72 0.09 64
4 07/13/2025 04:02:16 -78.14, -58.85 123.72 07/13/2025 04:01:59 -78.14, -58.84 123.73 0.22 17
5 07/15/2025 16:51:21 -77.97, 108.01 123.50 07/15/2025 16:51:43 -77.96, 107.91 123.51 2.44 22
6 07/15/2025 17:41:49 78.47, -82.03 57.01 07/15/2025 17:40:51 78.46, -82.14 57.00 2.73 58
7 07/18/2025 05:40:32 -77.54, -86.30 123.49 07/18/2025 05:41:32 -77.54, -86.30 123.49 0.09 60
8 07/18/2025 06:30:58 78.14, 83.90 57.11 07/18/2025 06:30:38 78.14, 83.89 57.10 0.15 20
9 07/20/2025 19:20:07 77.79,-110.10 57.23 07/20/2025 19:20:25 77.80,-110.06 57.24 1.18 18

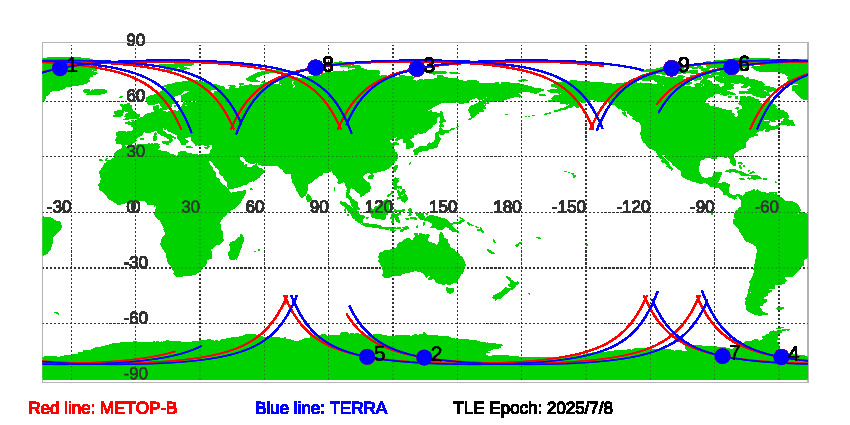

Figure of METOP-B and TERRA satellite orbits during SNOs since TLE Epoch: 7/8/2025

Download SNOs between METOP-B and TERRA since TLE EPOCH: 07/08/2025 in txt file.

Historial Predications of SNOs between METOP-B and TERRA
