Simultaneous Nadir Overpasses (SNOs) Predictions
Prediction of SNOs between METOP-B and NOAA-19 Satellite Orbit:
Table of predicted SNOs for the next 14.0 days since TLE Epoch: 6/17/2025
| Index | Date (METOP-B) | Time (METOP-B) | Lat,Lon (METOP-B) | SZA (METOP-B ) | Date (NOAA-19) | Time (NOAA-19) | Lat,Lon (NOAA-19) | SZA (NOAA-19 ) | Distance(km) | Time Diff (sec) |
| 1 | 06/18/2025 | 05:57:10 | -80.94, -23.04 | 116.84 | 06/18/2025 | 05:55:58 | -80.95, -22.96 | 116.87 | 1.42 | 72 |
| 2 | 06/18/2025 | 06:47:51 | 80.95, 144.23 | 63.15 | 06/18/2025 | 06:46:52 | 80.95, 144.05 | 63.09 | 3.21 | 59 |
| 3 | 06/18/2025 | 07:38:32 | -80.95, -48.49 | 116.86 | 06/18/2025 | 07:37:55 | -80.95, -48.66 | 116.90 | 2.98 | 37 |
| 4 | 06/18/2025 | 08:29:13 | 80.95, 118.79 | 63.14 | 06/18/2025 | 08:28:48 | 80.95, 118.73 | 63.11 | 1.02 | 25 |
| 5 | 06/18/2025 | 09:19:52 | -80.93, -73.57 | 116.83 | 06/18/2025 | 09:19:49 | -80.94, -73.61 | 116.83 | 0.67 | 3 |
| 6 | 06/18/2025 | 10:10:33 | 80.94, 93.70 | 63.17 | 06/18/2025 | 10:10:42 | 80.94, 93.79 | 63.19 | 1.54 | 9 |
| 7 | 06/18/2025 | 11:01:14 | -80.94, -99.02 | 116.84 | 06/18/2025 | 11:01:45 | -80.93, -98.93 | 116.81 | 1.73 | 31 |
| 8 | 06/18/2025 | 11:51:54 | 80.92, 68.61 | 63.20 | 06/18/2025 | 11:52:38 | 80.93, 68.47 | 63.21 | 2.68 | 44 |
| 9 | 06/18/2025 | 12:42:35 | -80.93,-124.11 | 116.81 | 06/18/2025 | 12:43:41 | -80.93,-124.25 | 116.79 | 2.54 | 66 |
| 10 | 06/30/2025 | 16:07:26 | 80.97, 3.79 | 63.27 | 06/30/2025 | 16:06:23 | 80.96, 3.97 | 63.25 | 3.28 | 63 |
| 11 | 06/30/2025 | 16:58:07 | -80.97, 171.11 | 116.74 | 06/30/2025 | 16:57:25 | -80.97, 171.01 | 116.78 | 1.72 | 42 |
| 12 | 06/30/2025 | 17:48:47 | 80.95, -21.31 | 63.30 | 06/30/2025 | 17:48:19 | 80.96, -21.35 | 63.28 | 1.04 | 28 |
| 13 | 06/30/2025 | 18:39:28 | -80.95, 146.02 | 116.70 | 06/30/2025 | 18:39:20 | -80.95, 146.06 | 116.70 | 0.66 | 8 |
| 14 | 06/30/2025 | 19:30:09 | 80.96, -46.76 | 63.29 | 06/30/2025 | 19:30:15 | 80.95, -46.68 | 63.31 | 1.39 | 6 |
| 15 | 06/30/2025 | 20:20:50 | -80.96, 120.57 | 116.71 | 06/30/2025 | 20:21:16 | -80.95, 120.72 | 116.68 | 2.83 | 26 |
| 16 | 06/30/2025 | 21:11:30 | 80.95, -71.85 | 63.33 | 06/30/2025 | 21:12:11 | 80.95, -72.01 | 63.33 | 2.86 | 41 |
| 17 | 06/30/2025 | 22:02:11 | -80.95, 95.48 | 116.68 | 06/30/2025 | 22:03:12 | -80.95, 95.39 | 116.65 | 1.50 | 61 |

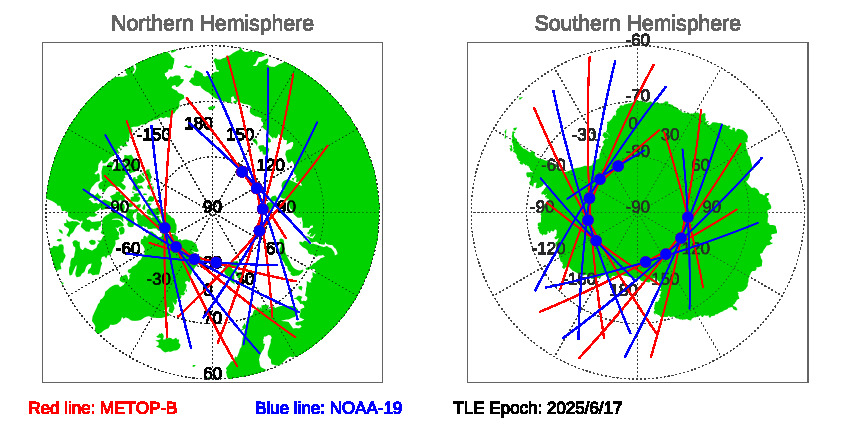

Figure of METOP-B and NOAA-19 satellite orbits during SNOs since TLE Epoch: 6/17/2025
Download SNOs between METOP-B and NOAA-19 since TLE EPOCH: 06/17/2025 in txt file.
Historial Predications of SNOs between METOP-B and NOAA-19
