Simultaneous Nadir Overpasses (SNOs) Predictions

Prediction of SNOs between METOP-B and NOAA-19 Satellite Orbit:

Table of predicted SNOs for the next 14.0 days since TLE Epoch: 5/31/2025
Index Date (METOP-B) Time (METOP-B) Lat,Lon (METOP-B) SZA (METOP-B ) Date (NOAA-19) Time (NOAA-19) Lat,Lon (NOAA-19) SZA (NOAA-19 ) Distance(km) Time Diff (sec)
1 06/05/2025 21:28:27 80.93, -75.46 64.07 06/05/2025 21:27:16 80.93, -75.37 64.04 1.53 71
2 06/05/2025 22:19:08 -80.93, 91.84 115.95 06/05/2025 22:18:19 -80.93, 91.99 115.96 2.62 49
3 06/05/2025 23:09:48 80.92,-100.60 64.08 06/05/2025 23:09:12 80.92,-100.68 64.05 1.60 36
4 06/06/2025 00:00:29 -80.92, 66.70 115.93 06/06/2025 00:00:15 -80.92, 66.68 115.94 0.41 14
5 06/06/2025 00:51:10 80.93,-126.10 64.06 06/06/2025 00:51:08 80.92,-125.99 64.07 2.02 2
6 06/06/2025 01:41:50 -80.91, 41.56 115.91 06/06/2025 01:42:10 -80.91, 41.74 115.87 3.19 20
7 06/06/2025 02:32:31 80.92,-151.24 64.07 06/06/2025 02:33:04 80.91,-151.30 64.09 1.09 33
8 06/06/2025 03:23:11 -80.90, 16.41 115.89 06/06/2025 03:24:06 -80.90, 16.43 115.85 0.58 55

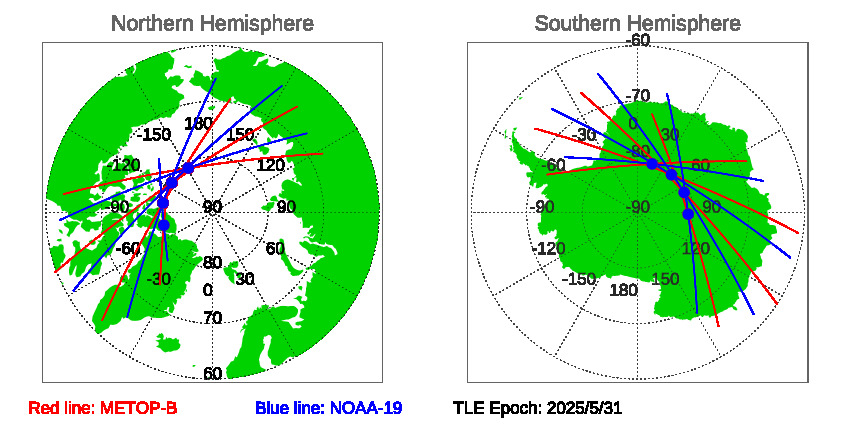

Figure of METOP-B and NOAA-19 satellite orbits during SNOs since TLE Epoch: 5/31/2025

Download SNOs between METOP-B and NOAA-19 since TLE EPOCH: 05/31/2025 in txt file.

Historial Predications of SNOs between METOP-B and NOAA-19
