Simultaneous Nadir Overpasses (SNOs) Predictions
Prediction of SNOs between LANDSAT-8 and TERRA Satellite Orbit:
Table of predicted SNOs for the next 14.0 days since TLE Epoch: 8/19/2024
| Index | Date (LANDSAT-8) | Time (LANDSAT-8) | Lat,Lon (LANDSAT-8) | SZA (LANDSAT-8 ) | Date (TERRA) | Time (TERRA) | Lat,Lon (TERRA) | SZA (TERRA ) | Distance(km) | Time Diff (sec) |
| 1 | 09/01/2024 | 04:05:56 | 81.78,-172.90 | 78.96 | 09/01/2024 | 04:07:06 | 81.78,-172.81 | 79.01 | 1.37 | 70 |
| 2 | 09/01/2024 | 04:55:22 | -81.78, -4.94 | 100.99 | 09/01/2024 | 04:56:26 | -81.77, -5.00 | 100.97 | 1.03 | 64 |
| 3 | 09/01/2024 | 05:44:48 | 81.77, 162.80 | 79.04 | 09/01/2024 | 05:45:47 | 81.77, 162.65 | 79.05 | 2.27 | 59 |
| 4 | 09/01/2024 | 06:34:15 | -81.78, -29.66 | 100.97 | 09/01/2024 | 06:35:07 | -81.77, -29.53 | 100.92 | 2.24 | 52 |
| 5 | 09/01/2024 | 07:23:41 | 81.77, 138.07 | 79.06 | 09/01/2024 | 07:24:28 | 81.77, 138.12 | 79.09 | 1.01 | 47 |
| 6 | 09/01/2024 | 08:13:08 | -81.78, -54.39 | 100.94 | 09/01/2024 | 08:13:49 | -81.78, -54.48 | 100.93 | 1.38 | 41 |
| 7 | 09/01/2024 | 09:02:34 | 81.77, 113.34 | 79.09 | 09/01/2024 | 09:03:10 | 81.78, 113.17 | 79.08 | 2.69 | 36 |
| 8 | 09/01/2024 | 09:52:01 | -81.78, -79.12 | 100.92 | 09/01/2024 | 09:52:30 | -81.77, -79.01 | 100.89 | 1.79 | 29 |
| 9 | 09/01/2024 | 10:41:27 | 81.77, 88.61 | 79.11 | 09/01/2024 | 10:41:51 | 81.77, 88.63 | 79.13 | 0.47 | 24 |
| 10 | 09/01/2024 | 11:30:53 | -81.77,-103.43 | 100.84 | 09/01/2024 | 11:31:11 | -81.77,-103.55 | 100.85 | 1.84 | 18 |
| 11 | 09/01/2024 | 12:20:19 | 81.77, 64.30 | 79.19 | 09/01/2024 | 12:20:32 | 81.77, 64.10 | 79.17 | 3.17 | 13 |
| 12 | 09/01/2024 | 13:09:46 | -81.77,-128.16 | 100.82 | 09/01/2024 | 13:09:52 | -81.76,-128.08 | 100.80 | 1.43 | 6 |
| 13 | 09/01/2024 | 13:59:12 | 81.77, 39.57 | 79.21 | 09/01/2024 | 13:59:13 | 81.76, 39.56 | 79.21 | 0.43 | 1 |
| 14 | 09/01/2024 | 14:48:39 | -81.77,-152.89 | 100.79 | 09/01/2024 | 14:48:34 | -81.77,-153.03 | 100.81 | 2.22 | 5 |
| 15 | 09/01/2024 | 15:38:06 | 81.78, 14.41 | 79.18 | 09/01/2024 | 15:37:55 | 81.77, 14.61 | 79.20 | 3.20 | 11 |
| 16 | 09/01/2024 | 16:27:32 | -81.77,-177.62 | 100.77 | 09/01/2024 | 16:27:15 | -81.77,-177.57 | 100.77 | 0.94 | 17 |
| 17 | 09/01/2024 | 17:16:58 | 81.77, -9.90 | 79.26 | 09/01/2024 | 17:16:36 | 81.77, -9.92 | 79.24 | 0.44 | 22 |
| 18 | 09/01/2024 | 18:06:24 | -81.76, 158.07 | 100.69 | 09/01/2024 | 18:05:56 | -81.76, 157.90 | 100.73 | 2.67 | 28 |
| 19 | 09/01/2024 | 18:55:51 | 81.77, -34.63 | 79.29 | 09/01/2024 | 18:55:17 | 81.77, -34.46 | 79.29 | 2.72 | 34 |
| 20 | 09/01/2024 | 19:45:18 | -81.77, 132.91 | 100.72 | 09/01/2024 | 19:44:38 | -81.77, 132.95 | 100.74 | 0.66 | 40 |
| 21 | 09/01/2024 | 20:34:43 | 81.76, -58.94 | 79.36 | 09/01/2024 | 20:33:58 | 81.76, -59.00 | 79.33 | 0.99 | 45 |
| 22 | 09/01/2024 | 21:24:10 | -81.76, 108.60 | 100.64 | 09/01/2024 | 21:23:19 | -81.77, 108.41 | 100.69 | 3.08 | 51 |
| 23 | 09/01/2024 | 22:13:37 | 81.77, -84.09 | 79.33 | 09/01/2024 | 22:12:40 | 81.77, -83.95 | 79.32 | 2.28 | 57 |
| 24 | 09/01/2024 | 23:03:03 | -81.76, 83.87 | 100.62 | 09/01/2024 | 23:02:00 | -81.76, 83.88 | 100.65 | 0.08 | 63 |

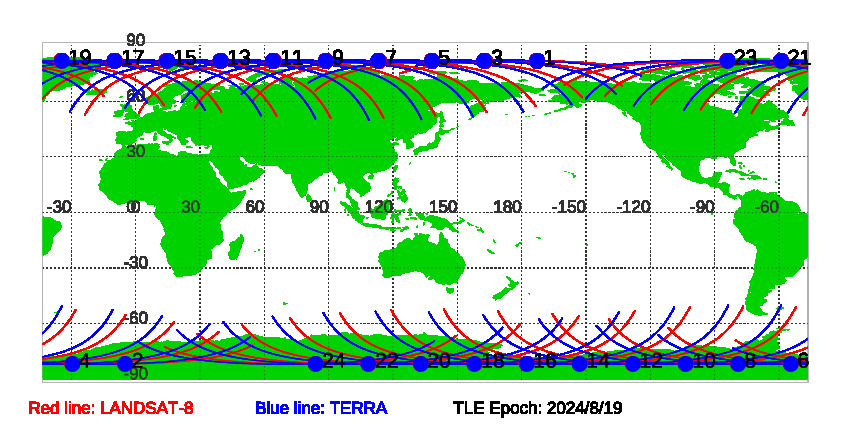

Figure of LANDSAT-8 and TERRA satellite orbits during SNOs since TLE Epoch: 8/19/2024
Download SNOs between LANDSAT-8 and TERRA since TLE EPOCH: 08/19/2024 in txt file.
Historial Predications of SNOs between LANDSAT-8 and TERRA
