Simultaneous Nadir Overpasses (SNOs) Predictions
Prediction of SNOs between LANDSAT-8 and NOAA-19 Satellite Orbit:
Table of predicted SNOs for the next 14.0 days since TLE Epoch: 7/24/2025
| Index | Date (LANDSAT-8) | Time (LANDSAT-8) | Lat,Lon (LANDSAT-8) | SZA (LANDSAT-8 ) | Date (NOAA-19) | Time (NOAA-19) | Lat,Lon (NOAA-19) | SZA (NOAA-19 ) | Distance(km) | Time Diff (sec) |
| 1 | 07/25/2025 | 11:40:12 | -77.40,-161.97 | 121.93 | 07/25/2025 | 11:39:02 | -77.41,-161.92 | 121.93 | 1.39 | 70 |
| 2 | 07/25/2025 | 12:29:26 | 77.93, 7.95 | 58.71 | 07/25/2025 | 12:29:50 | 77.94, 8.04 | 58.74 | 2.44 | 24 |
| 3 | 07/27/2025 | 18:52:47 | 77.47, -89.83 | 58.67 | 07/27/2025 | 18:52:05 | 77.47, -89.86 | 58.66 | 0.89 | 42 |
| 4 | 07/27/2025 | 19:42:04 | -77.94, 79.81 | 120.77 | 07/27/2025 | 19:42:48 | -77.94, 79.81 | 120.76 | 0.04 | 44 |
| 5 | 07/30/2025 | 02:05:23 | -77.56, -17.62 | 120.68 | 07/30/2025 | 02:05:00 | -77.57, -17.58 | 120.68 | 1.07 | 23 |
| 6 | 07/30/2025 | 02:54:38 | 78.04, 152.12 | 59.90 | 07/30/2025 | 02:55:50 | 78.04, 152.15 | 59.92 | 0.79 | 72 |
| 7 | 08/01/2025 | 09:17:58 | 77.60, 54.41 | 59.94 | 08/01/2025 | 09:18:04 | 77.60, 54.34 | 59.94 | 1.65 | 6 |
| 8 | 08/03/2025 | 15:41:15 | 77.28, -42.68 | 60.16 | 08/03/2025 | 15:40:14 | 77.29, -42.57 | 60.16 | 2.89 | 61 |
| 9 | 08/03/2025 | 16:30:34 | -77.67, 126.55 | 119.38 | 08/03/2025 | 16:30:59 | -77.66, 126.48 | 119.39 | 2.06 | 25 |
| 10 | 08/05/2025 | 22:53:52 | -77.30, 29.23 | 119.21 | 08/05/2025 | 22:53:10 | -77.31, 29.30 | 119.20 | 1.81 | 42 |

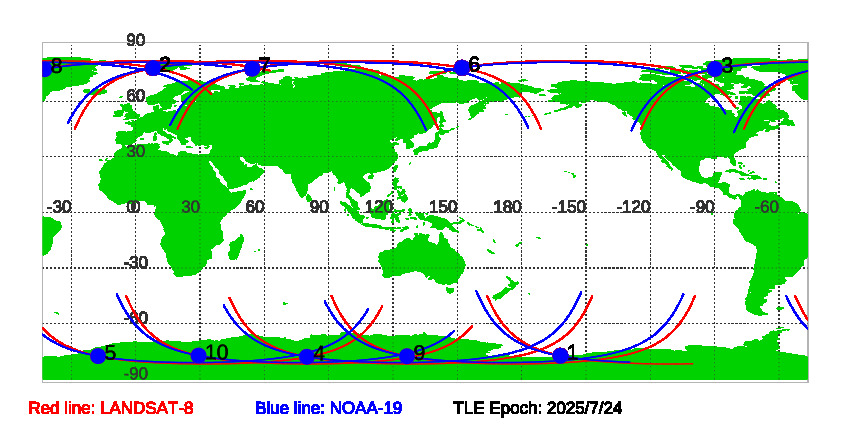

Figure of LANDSAT-8 and NOAA-19 satellite orbits during SNOs since TLE Epoch: 7/24/2025
Download SNOs between LANDSAT-8 and NOAA-19 since TLE EPOCH: 07/24/2025 in txt file.
Historial Predications of SNOs between LANDSAT-8 and NOAA-19
