Simultaneous Nadir Overpasses (SNOs) Predictions
Prediction of SNOs between LANDSAT-8 and NOAA-19 Satellite Orbit:
Table of predicted SNOs for the next 14.0 days since TLE Epoch: 7/17/2025
| Index | Date (LANDSAT-8) | Time (LANDSAT-8) | Lat,Lon (LANDSAT-8) | SZA (LANDSAT-8 ) | Date (NOAA-19) | Time (NOAA-19) | Lat,Lon (NOAA-19) | SZA (NOAA-19 ) | Distance(km) | Time Diff (sec) |
| 1 | 07/18/2025 | 14:51:39 | -77.70, 151.38 | 122.94 | 07/18/2025 | 14:50:50 | -77.70, 151.42 | 122.94 | 0.92 | 49 |
| 2 | 07/18/2025 | 15:40:56 | 78.09, -39.22 | 57.54 | 07/18/2025 | 15:41:40 | 78.09, -39.25 | 57.55 | 0.95 | 44 |
| 3 | 07/20/2025 | 22:04:15 | 77.76,-136.51 | 57.56 | 07/20/2025 | 22:03:52 | 77.76,-136.50 | 57.56 | 0.39 | 23 |
| 4 | 07/20/2025 | 22:53:34 | -78.13, 32.80 | 121.99 | 07/20/2025 | 22:54:39 | -78.12, 32.70 | 121.99 | 2.65 | 65 |
| 5 | 07/23/2025 | 05:16:52 | -77.84, -64.32 | 121.89 | 07/23/2025 | 05:16:49 | -77.85, -64.25 | 121.88 | 1.99 | 3 |
| 6 | 07/25/2025 | 11:40:13 | -77.40,-161.98 | 121.93 | 07/25/2025 | 11:39:03 | -77.40,-161.95 | 121.94 | 1.08 | 70 |
| 7 | 07/25/2025 | 12:29:27 | 77.92, 7.89 | 58.70 | 07/25/2025 | 12:29:51 | 77.93, 7.98 | 58.72 | 2.39 | 24 |
| 8 | 07/27/2025 | 18:52:48 | 77.47, -89.84 | 58.67 | 07/27/2025 | 18:52:06 | 77.46, -89.90 | 58.65 | 1.50 | 42 |
| 9 | 07/27/2025 | 19:42:05 | -77.94, 79.83 | 120.76 | 07/27/2025 | 19:42:49 | -77.94, 79.80 | 120.76 | 0.87 | 44 |
| 10 | 07/30/2025 | 02:05:25 | -77.53, -17.74 | 120.72 | 07/30/2025 | 02:05:02 | -77.53, -17.76 | 120.72 | 0.53 | 23 |

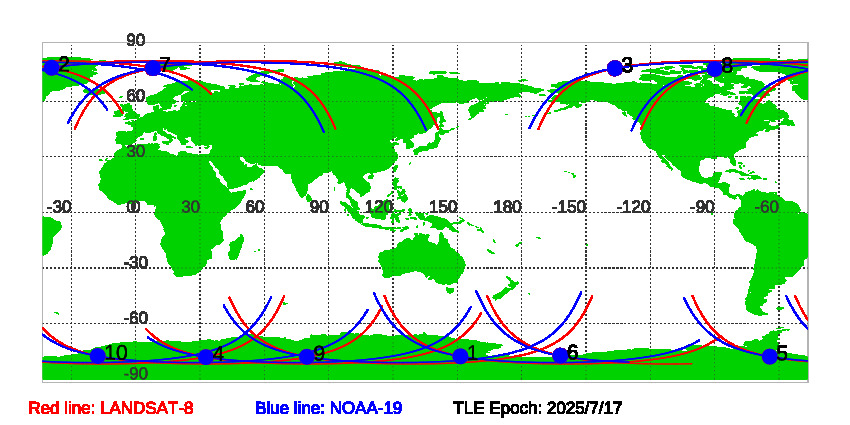

Figure of LANDSAT-8 and NOAA-19 satellite orbits during SNOs since TLE Epoch: 7/17/2025
Download SNOs between LANDSAT-8 and NOAA-19 since TLE EPOCH: 07/17/2025 in txt file.
Historial Predications of SNOs between LANDSAT-8 and NOAA-19
