Simultaneous Nadir Overpasses (SNOs) Predictions
Prediction of SNOs between LANDSAT-8 and NOAA-19 Satellite Orbit:
Table of predicted SNOs for the next 14.0 days since TLE Epoch: 7/14/2025
| Index | Date (LANDSAT-8) | Time (LANDSAT-8) | Lat,Lon (LANDSAT-8) | SZA (LANDSAT-8 ) | Date (NOAA-19) | Time (NOAA-19) | Lat,Lon (NOAA-19) | SZA (NOAA-19 ) | Distance(km) | Time Diff (sec) |
| 1 | 07/16/2025 | 07:39:02 | 77.61, 79.15 | 56.56 | 07/16/2025 | 07:37:52 | 77.61, 79.14 | 56.55 | 0.27 | 70 |
| 2 | 07/16/2025 | 08:28:21 | -77.98,-111.57 | 122.99 | 07/16/2025 | 08:28:40 | -77.97,-111.69 | 123.00 | 2.90 | 19 |
| 3 | 07/18/2025 | 14:51:40 | -77.66, 151.22 | 122.99 | 07/18/2025 | 14:50:51 | -77.67, 151.22 | 122.99 | 0.30 | 49 |
| 4 | 07/18/2025 | 15:40:56 | 78.09, -39.20 | 57.55 | 07/18/2025 | 15:41:40 | 78.09, -39.26 | 57.55 | 1.53 | 44 |
| 5 | 07/20/2025 | 22:04:16 | 77.72,-136.68 | 57.52 | 07/20/2025 | 22:03:53 | 77.72,-136.71 | 57.51 | 0.84 | 23 |
| 6 | 07/20/2025 | 22:53:33 | -78.18, 33.06 | 121.92 | 07/20/2025 | 22:54:37 | -78.19, 33.15 | 121.89 | 2.43 | 64 |
| 7 | 07/23/2025 | 05:16:53 | -77.81, -64.46 | 121.93 | 07/23/2025 | 05:16:50 | -77.81, -64.46 | 121.93 | 0.21 | 3 |
| 8 | 07/25/2025 | 11:40:15 | -77.33,-162.27 | 122.02 | 07/25/2025 | 11:39:05 | -77.32,-162.35 | 122.04 | 2.18 | 70 |
| 9 | 07/25/2025 | 12:29:28 | 77.89, 7.77 | 58.67 | 07/25/2025 | 12:29:52 | 77.89, 7.74 | 58.67 | 0.84 | 24 |
| 10 | 07/27/2025 | 18:52:48 | 77.49, -89.74 | 58.70 | 07/27/2025 | 18:52:05 | 77.50, -89.73 | 58.69 | 0.37 | 43 |

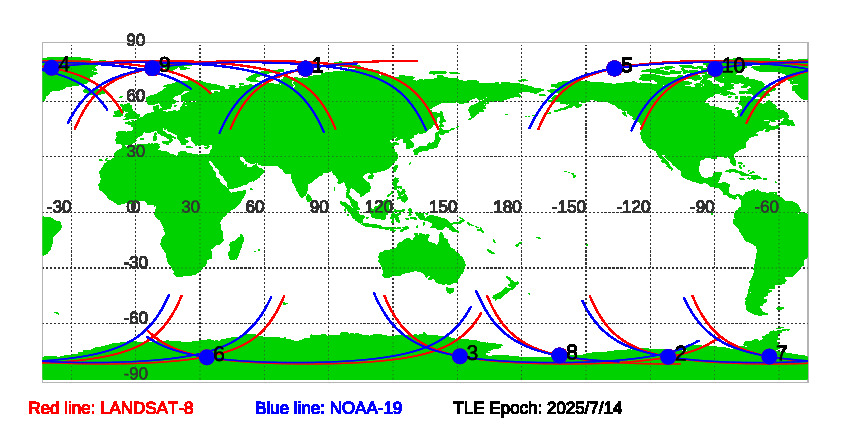

Figure of LANDSAT-8 and NOAA-19 satellite orbits during SNOs since TLE Epoch: 7/14/2025
Download SNOs between LANDSAT-8 and NOAA-19 since TLE EPOCH: 07/14/2025 in txt file.
Historial Predications of SNOs between LANDSAT-8 and NOAA-19
