Simultaneous Nadir Overpasses (SNOs) Predictions
Prediction of SNOs between LANDSAT-8 and NOAA-19 Satellite Orbit:
Table of predicted SNOs for the next 14.0 days since TLE Epoch: 6/18/2025
| Index | Date (LANDSAT-8) | Time (LANDSAT-8) | Lat,Lon (LANDSAT-8) | SZA (LANDSAT-8 ) | Date (NOAA-19) | Time (NOAA-19) | Lat,Lon (NOAA-19) | SZA (NOAA-19 ) | Distance(km) | Time Diff (sec) |
| 1 | 06/18/2025 | 20:24:55 | 78.43,-108.65 | 55.52 | 06/18/2025 | 20:24:51 | 78.42,-108.69 | 55.52 | 0.91 | 4 |
| 2 | 06/21/2025 | 02:48:13 | 78.16, 154.25 | 55.16 | 06/21/2025 | 02:47:03 | 78.17, 154.29 | 55.15 | 0.98 | 70 |
| 3 | 06/21/2025 | 03:37:33 | -78.47, -36.56 | 124.45 | 06/21/2025 | 03:37:58 | -78.47, -36.63 | 124.45 | 1.69 | 25 |
| 4 | 06/23/2025 | 10:00:51 | -78.21,-133.70 | 124.78 | 06/23/2025 | 10:00:10 | -78.20,-133.77 | 124.80 | 1.75 | 41 |
| 5 | 06/23/2025 | 10:50:08 | 78.58, 35.84 | 55.70 | 06/23/2025 | 10:50:53 | 78.59, 35.95 | 55.74 | 2.75 | 45 |
| 6 | 06/25/2025 | 17:13:27 | 78.26, -61.61 | 55.34 | 06/25/2025 | 17:13:07 | 78.26, -61.62 | 55.33 | 0.36 | 20 |
| 7 | 06/25/2025 | 18:02:47 | -78.57, 107.63 | 124.26 | 06/25/2025 | 18:04:01 | -78.57, 107.55 | 124.25 | 1.87 | 74 |
| 8 | 06/28/2025 | 00:26:04 | -78.33, 10.59 | 124.49 | 06/28/2025 | 00:26:12 | -78.32, 10.54 | 124.50 | 1.15 | 8 |
| 9 | 06/30/2025 | 06:49:22 | -78.02, -86.66 | 124.75 | 06/30/2025 | 06:48:24 | -78.02, -86.65 | 124.77 | 0.18 | 58 |

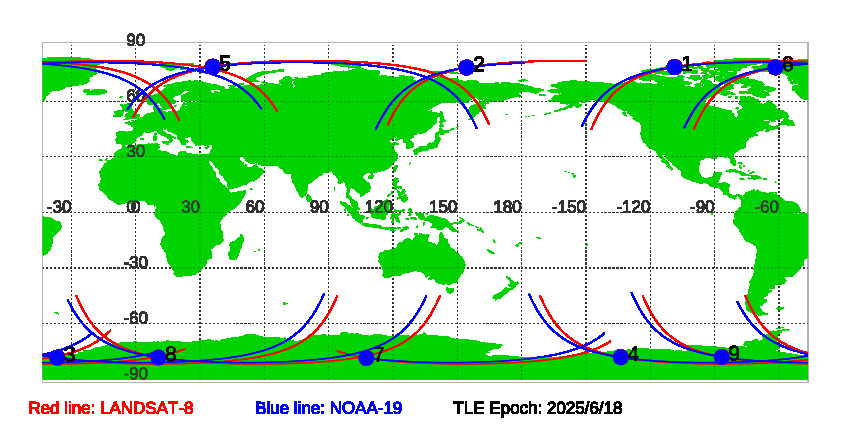

Figure of LANDSAT-8 and NOAA-19 satellite orbits during SNOs since TLE Epoch: 6/18/2025
Download SNOs between LANDSAT-8 and NOAA-19 since TLE EPOCH: 06/18/2025 in txt file.
Historial Predications of SNOs between LANDSAT-8 and NOAA-19
