Simultaneous Nadir Overpasses (SNOs) Predictions
Prediction of SNOs between LANDSAT-8 and NOAA-19 Satellite Orbit:
Table of predicted SNOs for the next 14.0 days since TLE Epoch: 6/16/2025
| Index | Date (LANDSAT-8) | Time (LANDSAT-8) | Lat,Lon (LANDSAT-8) | SZA (LANDSAT-8 ) | Date (NOAA-19) | Time (NOAA-19) | Lat,Lon (NOAA-19) | SZA (NOAA-19 ) | Distance(km) | Time Diff (sec) |
| 1 | 06/16/2025 | 13:12:18 | -78.42, 179.45 | 124.44 | 06/16/2025 | 13:11:54 | -78.41, 179.45 | 124.44 | 0.22 | 24 |
| 2 | 06/16/2025 | 14:01:38 | 78.67, -11.59 | 55.89 | 06/16/2025 | 14:02:40 | 78.66, -11.67 | 55.90 | 1.89 | 62 |
| 3 | 06/18/2025 | 20:24:56 | 78.42,-108.70 | 55.51 | 06/18/2025 | 20:24:52 | 78.42,-108.73 | 55.51 | 0.78 | 4 |
| 4 | 06/21/2025 | 02:48:14 | 78.15, 154.21 | 55.15 | 06/21/2025 | 02:47:04 | 78.16, 154.26 | 55.14 | 1.33 | 70 |
| 5 | 06/21/2025 | 03:37:33 | -78.51, -36.37 | 124.40 | 06/21/2025 | 03:37:58 | -78.50, -36.42 | 124.40 | 1.41 | 25 |
| 6 | 06/23/2025 | 10:00:52 | -78.20,-133.73 | 124.79 | 06/23/2025 | 10:00:11 | -78.20,-133.78 | 124.80 | 1.11 | 41 |
| 7 | 06/23/2025 | 10:50:11 | 78.49, 35.35 | 55.58 | 06/23/2025 | 10:50:57 | 78.48, 35.23 | 55.58 | 2.97 | 46 |
| 8 | 06/25/2025 | 17:13:26 | 78.29, -61.43 | 55.38 | 06/25/2025 | 17:13:06 | 78.29, -61.40 | 55.38 | 0.76 | 20 |
| 9 | 06/25/2025 | 18:02:46 | -78.61, 107.83 | 124.22 | 06/25/2025 | 18:04:00 | -78.60, 107.79 | 124.20 | 0.80 | 74 |

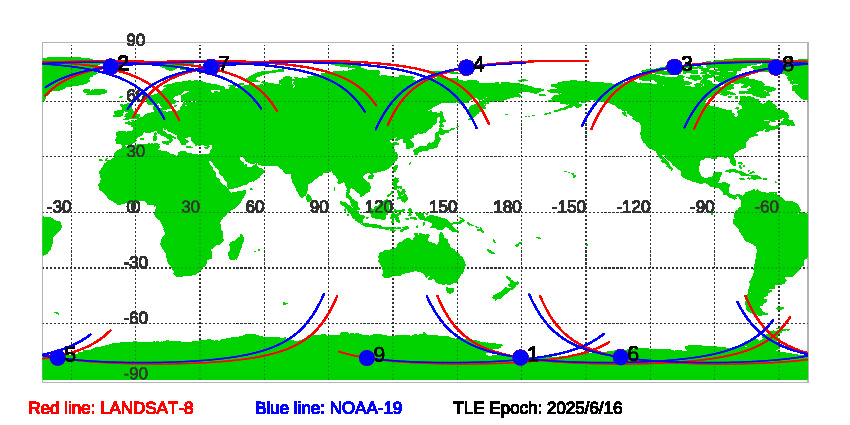

Figure of LANDSAT-8 and NOAA-19 satellite orbits during SNOs since TLE Epoch: 6/16/2025
Download SNOs between LANDSAT-8 and NOAA-19 since TLE EPOCH: 06/16/2025 in txt file.
Historial Predications of SNOs between LANDSAT-8 and NOAA-19
