Simultaneous Nadir Overpasses (SNOs) Predictions
Prediction of SNOs between LANDSAT-8 and NOAA-19 Satellite Orbit:
Table of predicted SNOs for the next 14.0 days since TLE Epoch: 6/3/2025
| Index | Date (LANDSAT-8) | Time (LANDSAT-8) | Lat,Lon (LANDSAT-8) | SZA (LANDSAT-8 ) | Date (NOAA-19) | Time (NOAA-19) | Lat,Lon (NOAA-19) | SZA (NOAA-19 ) | Distance(km) | Time Diff (sec) |
| 1 | 06/05/2025 | 01:58:25 | -78.50, -11.68 | 123.48 | 06/05/2025 | 01:57:31 | -78.51, -11.61 | 123.49 | 1.71 | 54 |
| 2 | 06/05/2025 | 02:47:45 | 78.75, 157.30 | 56.84 | 06/05/2025 | 02:48:17 | 78.74, 157.20 | 56.84 | 2.30 | 32 |
| 3 | 06/07/2025 | 09:11:00 | 78.51, 60.24 | 56.30 | 06/07/2025 | 09:10:29 | 78.51, 60.24 | 56.29 | 0.20 | 31 |
| 4 | 06/07/2025 | 10:00:20 | -78.81,-130.50 | 123.32 | 06/07/2025 | 10:01:25 | -78.81,-130.57 | 123.31 | 1.67 | 65 |
| 5 | 06/09/2025 | 16:23:33 | -78.65, 132.82 | 123.73 | 06/09/2025 | 16:23:35 | -78.65, 132.91 | 123.72 | 1.96 | 2 |
| 6 | 06/11/2025 | 22:46:49 | -78.34, 35.44 | 124.30 | 06/11/2025 | 22:45:49 | -78.34, 35.45 | 124.31 | 0.13 | 60 |
| 7 | 06/11/2025 | 23:36:07 | 78.67,-155.22 | 56.13 | 06/11/2025 | 23:36:32 | 78.68,-155.10 | 56.16 | 2.83 | 25 |
| 8 | 06/14/2025 | 05:59:21 | 78.43, 107.74 | 55.68 | 06/14/2025 | 05:58:44 | 78.44, 107.85 | 55.69 | 2.84 | 37 |
| 9 | 06/14/2025 | 06:48:41 | -78.73, -82.99 | 123.92 | 06/14/2025 | 06:49:40 | -78.73, -83.00 | 123.91 | 0.55 | 59 |

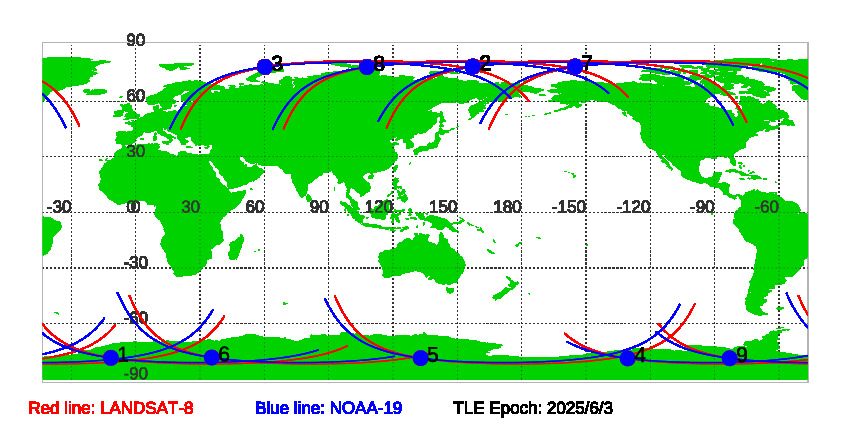

Figure of LANDSAT-8 and NOAA-19 satellite orbits during SNOs since TLE Epoch: 6/3/2025
Download SNOs between LANDSAT-8 and NOAA-19 since TLE EPOCH: 06/03/2025 in txt file.
Historial Predications of SNOs between LANDSAT-8 and NOAA-19
