Simultaneous Nadir Overpasses (SNOs) Predictions
Prediction of SNOs between LANDSAT-8 and NOAA-19 Satellite Orbit:
Table of predicted SNOs for the next 14.0 days since TLE Epoch: 5/17/2025
| Index | Date (LANDSAT-8) | Time (LANDSAT-8) | Lat,Lon (LANDSAT-8) | SZA (LANDSAT-8 ) | Date (NOAA-19) | Time (NOAA-19) | Lat,Lon (NOAA-19) | SZA (NOAA-19 ) | Distance(km) | Time Diff (sec) |
| 1 | 05/17/2025 | 18:45:35 | 78.92, -81.25 | 60.15 | 05/17/2025 | 18:45:31 | 78.92, -81.18 | 60.16 | 1.63 | 4 |
| 2 | 05/20/2025 | 01:08:51 | 78.69,-178.29 | 59.36 | 05/20/2025 | 01:07:44 | 78.71,-178.19 | 59.36 | 2.62 | 67 |
| 3 | 05/20/2025 | 01:58:12 | -78.95, -9.22 | 120.31 | 05/20/2025 | 01:58:39 | -78.94, -9.26 | 120.31 | 0.93 | 27 |
| 4 | 05/22/2025 | 08:21:28 | -78.72,-106.31 | 121.07 | 05/22/2025 | 08:20:53 | -78.71,-106.42 | 121.10 | 2.70 | 35 |
| 5 | 05/22/2025 | 09:10:47 | 79.00, 62.94 | 59.30 | 05/22/2025 | 09:11:39 | 78.99, 62.88 | 59.31 | 1.56 | 52 |
| 6 | 05/24/2025 | 15:34:02 | 78.80, -34.01 | 58.60 | 05/24/2025 | 15:33:51 | 78.80, -33.98 | 58.60 | 0.58 | 11 |
| 7 | 05/26/2025 | 21:57:19 | 78.50,-131.42 | 57.81 | 05/26/2025 | 21:56:06 | 78.49,-131.55 | 57.77 | 3.08 | 73 |
| 8 | 05/26/2025 | 22:46:37 | -78.89, 38.34 | 121.69 | 05/26/2025 | 22:46:58 | -78.89, 38.41 | 121.67 | 1.44 | 21 |
| 9 | 05/29/2025 | 05:09:53 | -78.62, -58.91 | 122.40 | 05/29/2025 | 05:09:12 | -78.63, -58.89 | 122.41 | 0.51 | 41 |

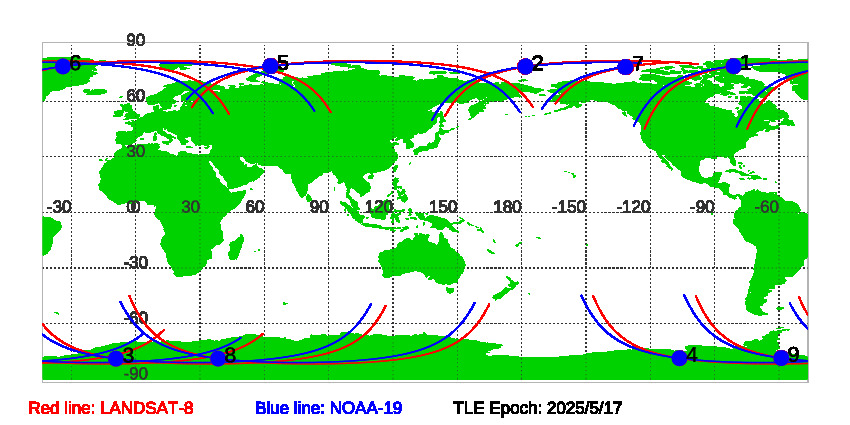

Figure of LANDSAT-8 and NOAA-19 satellite orbits during SNOs since TLE Epoch: 5/17/2025
Download SNOs between LANDSAT-8 and NOAA-19 since TLE EPOCH: 05/17/2025 in txt file.
Historial Predications of SNOs between LANDSAT-8 and NOAA-19
