Simultaneous Nadir Overpasses (SNOs) Predictions

Prediction of SNOs between HIMAWARI-9 and NOAA-21 Satellite Orbit:

Table of predicted SNOs for the next 14.0 days since TLE Epoch: 6/15/2025
Index Date Time (HIMAWARI-9) HIMAWARI-9 Lat,Lon NOAA-21 Lat,Lon Distance(km) Time Diff (sec)
1 06/16/2025 16:16:24 -0.02, 140.76 0.71, 137.60 360.49 80
2 06/17/2025 15:55:00 -0.02, 140.76 -0.34, 142.12 156.44 80
3 06/19/2025 04:16:58 0.02, 140.74 -0.86, 136.82 446.99 80
4 06/20/2025 04:00:54 0.02, 140.73 0.19, 141.34 70.46 80
5 06/22/2025 16:03:58 -0.03, 140.70 -0.01, 140.60 11.48 80
6 06/25/2025 04:04:32 0.04, 140.67 -0.14, 139.81 97.16 80
7 06/26/2025 03:48:27 0.03, 140.65 0.86, 144.35 420.86 80
8 06/27/2025 16:10:16 -0.04, 140.63 0.30, 139.07 176.80 80
9 06/28/2025 15:48:51 -0.03, 140.61 -0.70, 143.60 341.73 80

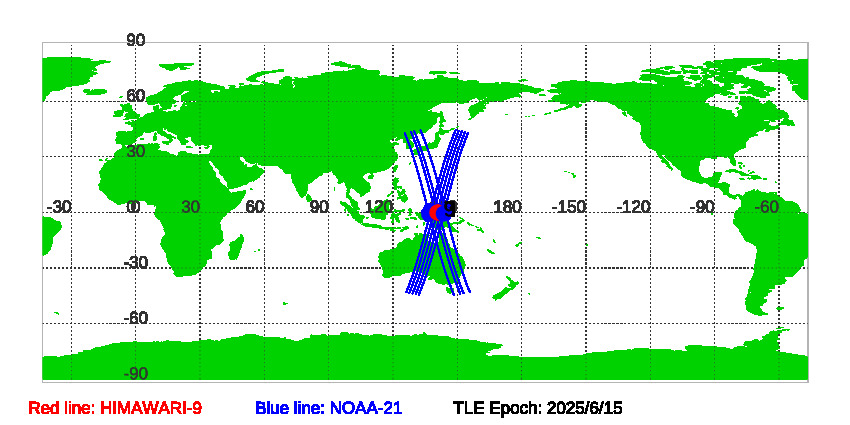

Figure of HIMAWARI-9 and NOAA-21 satellite orbits during SNOs since TLE Epoch: 6/15/2025

Download SNOs between HIMAWARI-9 and NOAA-21 since TLE EPOCH: 06/15/2025 in txt file.

Historical Predications of SNOs between HIMAWARI-9 and NOAA-21
