Simultaneous Nadir Overpasses (SNOs) Predictions

Prediction of SNOs between HIMAWARI-9 and NOAA-21 Satellite Orbit:

Table of predicted SNOs for the next 14.0 days since TLE Epoch: 6/9/2025
Index Date Time (HIMAWARI-9) HIMAWARI-9 Lat,Lon NOAA-21 Lat,Lon Distance(km) Time Diff (sec)
1 06/10/2025 03:48:18 0.02, 140.76 0.83, 144.39 413.81 80
2 06/11/2025 16:10:06 -0.02, 140.77 0.36, 139.13 187.69 80
3 06/12/2025 15:48:42 -0.01, 140.77 -0.68, 143.65 328.20 80
4 06/14/2025 04:10:40 0.01, 140.78 -0.52, 138.34 277.03 80
5 06/15/2025 03:54:35 0.00, 140.77 0.46, 142.88 239.48 80
6 06/16/2025 16:16:24 0.00, 140.76 0.72, 137.61 360.43 80
7 06/17/2025 15:55:00 0.01, 140.76 -0.32, 142.13 156.35 80
8 06/19/2025 04:16:57 -0.01, 140.75 -0.88, 136.82 448.13 80
9 06/20/2025 04:00:53 -0.01, 140.75 0.11, 141.35 69.07 80
10 06/22/2025 16:03:58 -0.00, 140.72 0.02, 140.60 12.73 80

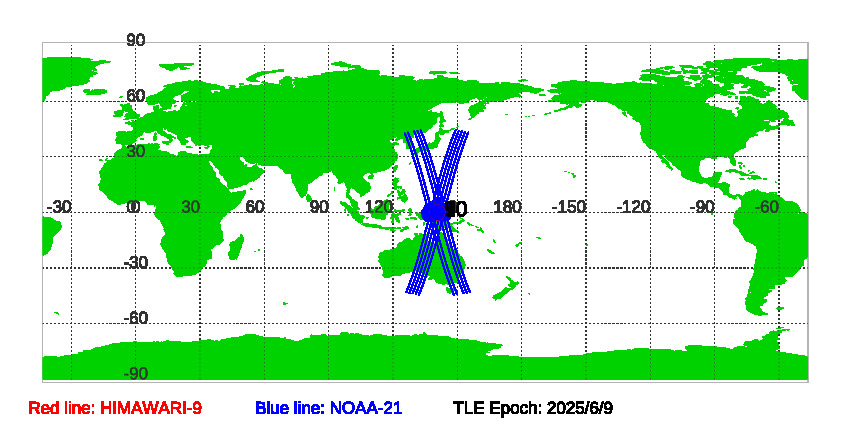

Figure of HIMAWARI-9 and NOAA-21 satellite orbits during SNOs since TLE Epoch: 6/9/2025

Download SNOs between HIMAWARI-9 and NOAA-21 since TLE EPOCH: 06/09/2025 in txt file.

Historical Predications of SNOs between HIMAWARI-9 and NOAA-21
